Flat-Mount Swing Hanger with Twin Bearings
This compact ceiling or beam hanger combines a two-hole mounting plate, enclosed double-bearing pivot and forged-style oval suspension eye. The rotating joint helps the connected fitting follow the direction of movement, while the flat plate supports straightforward overhead installation.
Supplier Reference Dimensions
| Mounting plate | 90 mm long and 6 mm thick. |
|---|---|
| Mounting holes | 11 mm diameter with 70 mm center distance. |
| Overall height | 84 mm. |
| Pivot bolt | 12 mm reference diameter. |
| Suspension eye | 10 mm section with an approximately 22 × 15 mm internal opening. |
The dimensions above are transcribed from the supplied supplier image and should be confirmed against the required drawing before production.
Materials and Custom Options
| Material shown | Stainless steel, as identified in the supplied reference. |
|---|---|
| Custom materials | 304, 316 and other stainless steel grades, carbon steel, aluminum alloy, titanium alloy and special alloys can be evaluated for the operating environment and load requirements. |
| Configuration | Flat mounting plate, twin-bearing pivot, through bolt with locknut and oval connection eye. |

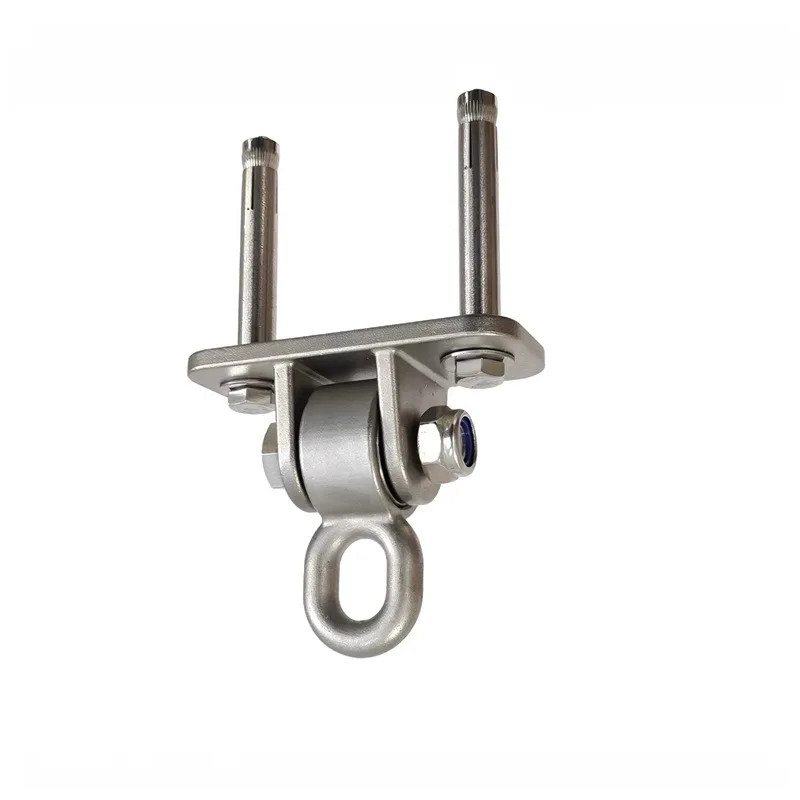

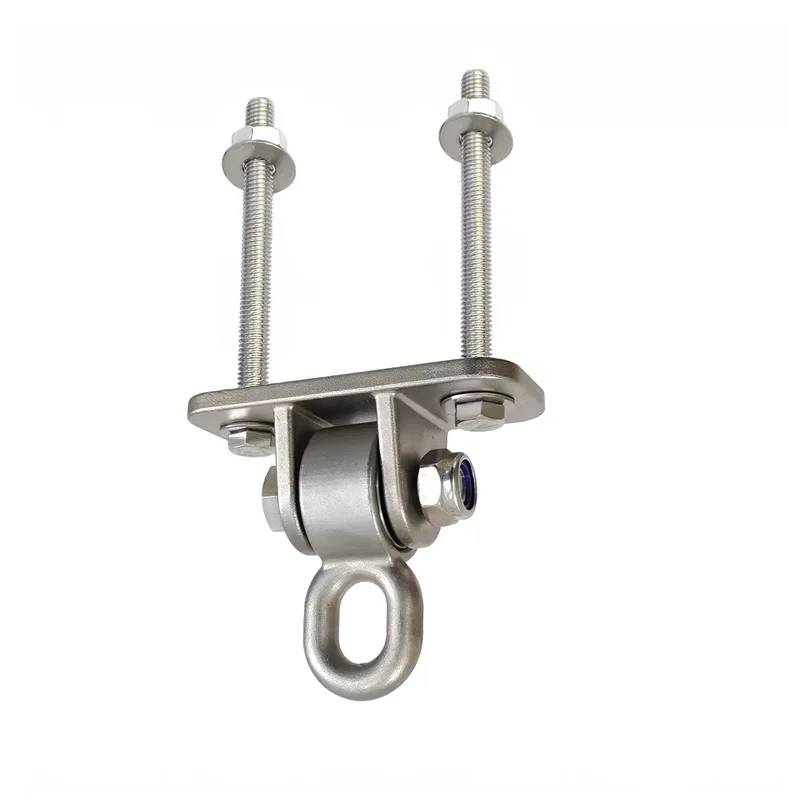

| Mounting options | Expansion anchors, threaded rods or project-specific fasteners, selected to suit the substrate and installation design. |
| Custom processing | Plate size, hole spacing, eye geometry, bearing arrangement, surface finish and markings can be made to drawing review. |
Applications and Selection

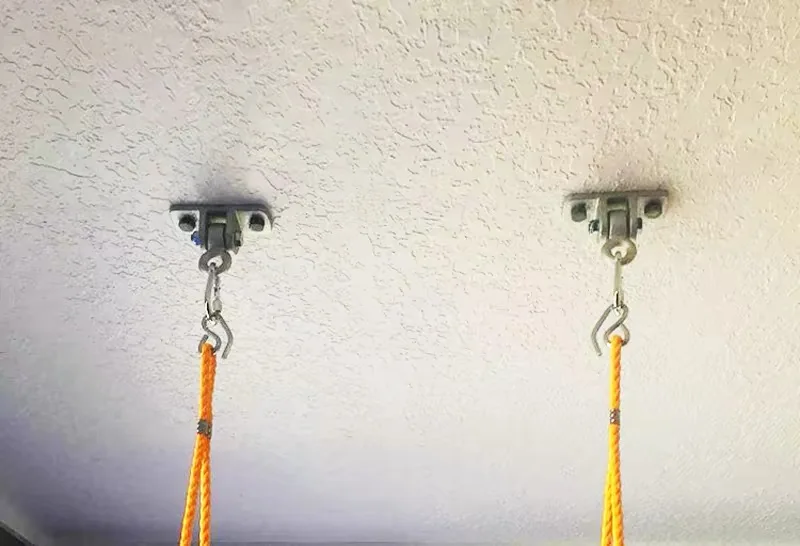

Suitable enquiries include swing frames, suspended seats, hanging chairs, fitness and recreation equipment, indoor or outdoor suspension points and custom moving assemblies.
No safe working load is established by the photographs. Provide the required static and dynamic load, safety factor, movement range, mounting substrate, environmental exposure and applicable testing or certification requirements. Structural suitability and anchor selection must be verified for the actual installation.
