From prototype to production, Aodson delivers one-stop CNC machining services with expert DFM analysis and process optimization to achieve cost-effective, precision parts in days.
Aodson delivers comprehensive CNC machining solutions engineered to meet the most demanding manufacturing requirements. Leveraging state-of-the-art technology, we produce precision components with ultra-tight tolerances, superior surface finishes, and unwavering repeatability—from initial prototypes to full-scale mass production.
Our technical expertise spans 3-axis, 4-axis, and advanced 5-axis machining, allowing us to master complex geometries and intricate designs across a diverse range of materials, including high-performance alloys, plastics, and composites.
At Aodson, we bridge the gap between quality and efficiency. By combining competitive pricing with rapid turnaround times and expert engineering support, we ensure every component not only meets but exceeds your performance benchmarks.

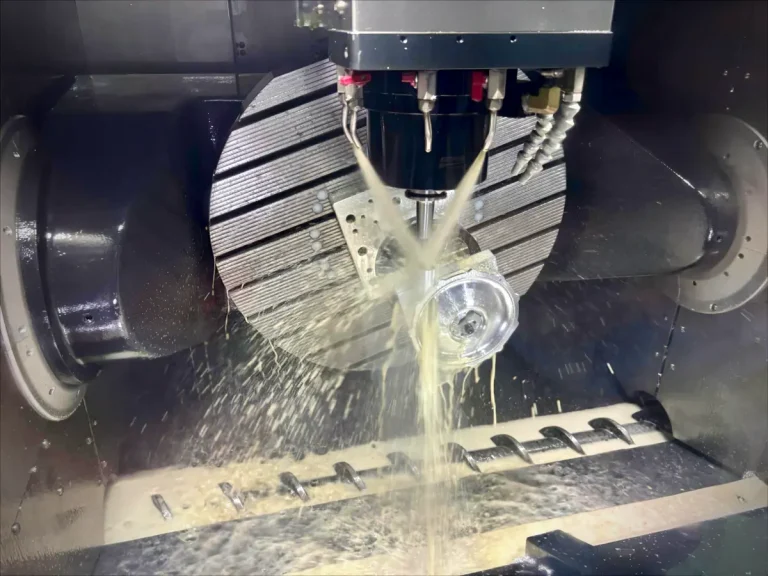

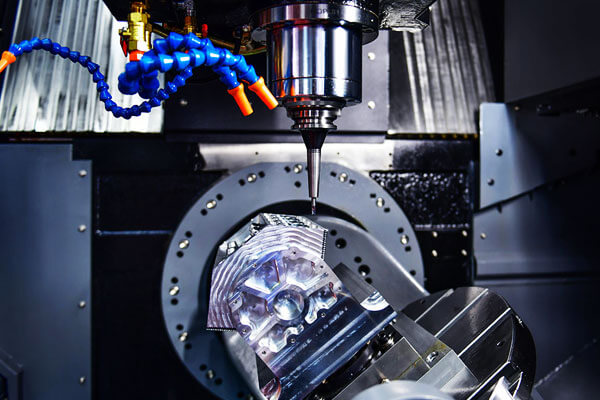

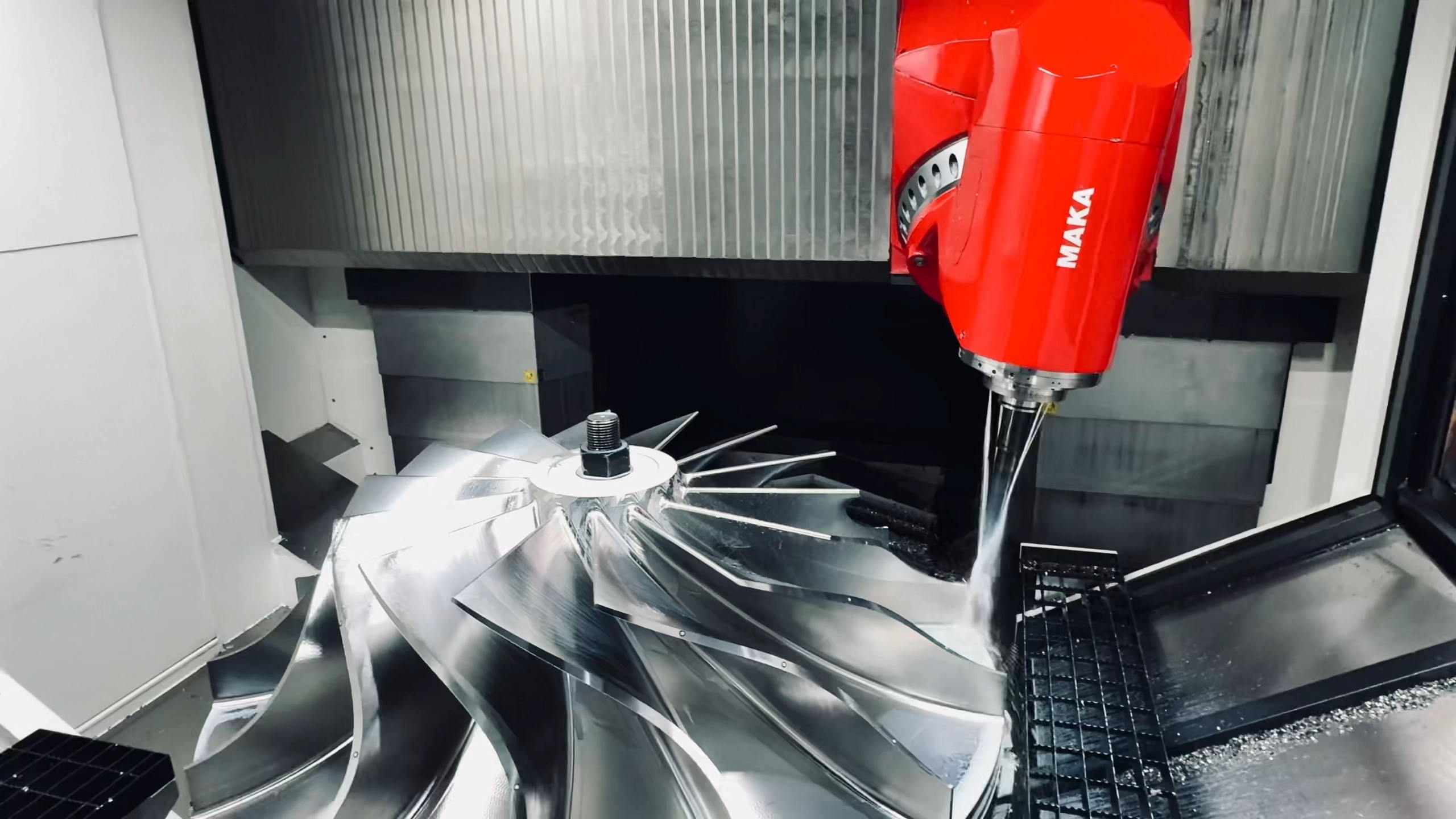

Aodson delivers high-precision CNC milling excellence supported by an extensive fleet of over 150 advanced milling centers. Our capabilities feature a full range of 3-axis, 4-axis, and state-of-the-art 5-axis CNC machines, ensuring we can handle any project scale with uncompromising accuracy.

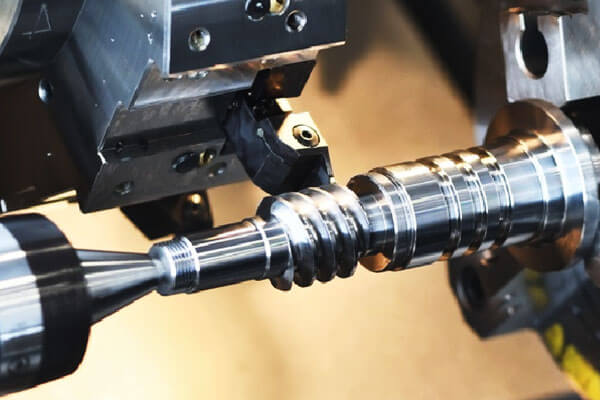

Equipped with state-of-the-art turning centers and mill-turn capabilities, Aodson provides a seamless transition from design to finished component. We specialize in fast-track production, delivering high-precision turned parts within days to keep your projects on schedule.

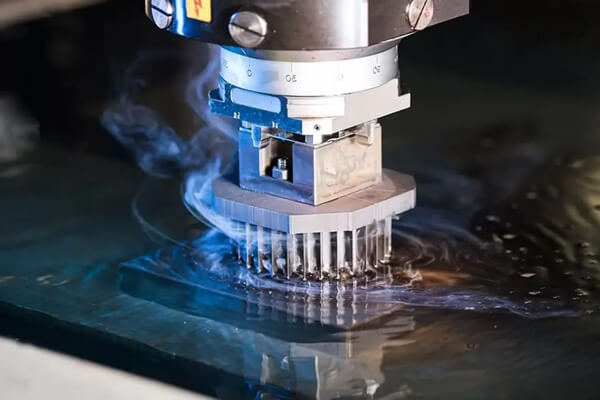

Aodson excels in high-precision EDM machining services, integrating both Wire EDM and Sinker EDM technologies. We specialize in producing complex, intricate components with exceptional micron-level accuracy, ensuring flawless results even on the most challenging materials and geometries.

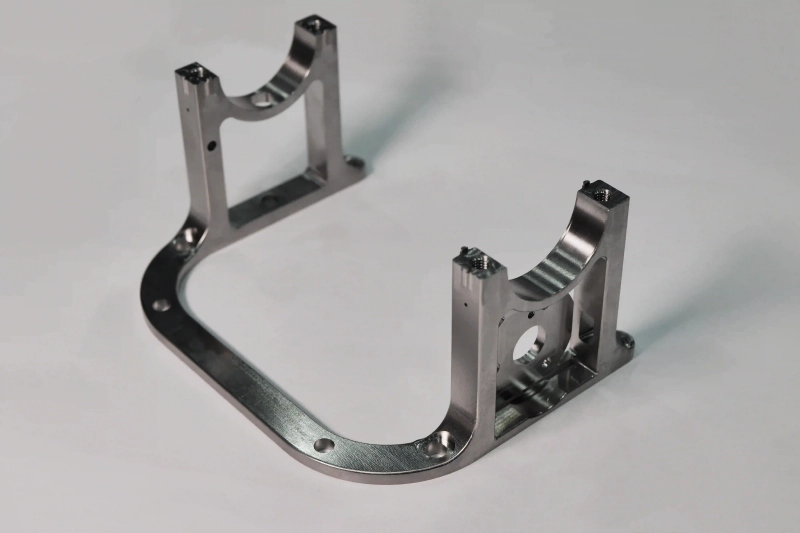

Quickly turn your designs into functional prototypes for form, fit, and basic performance testing.
Verify engineering performance and material properties under real conditions.

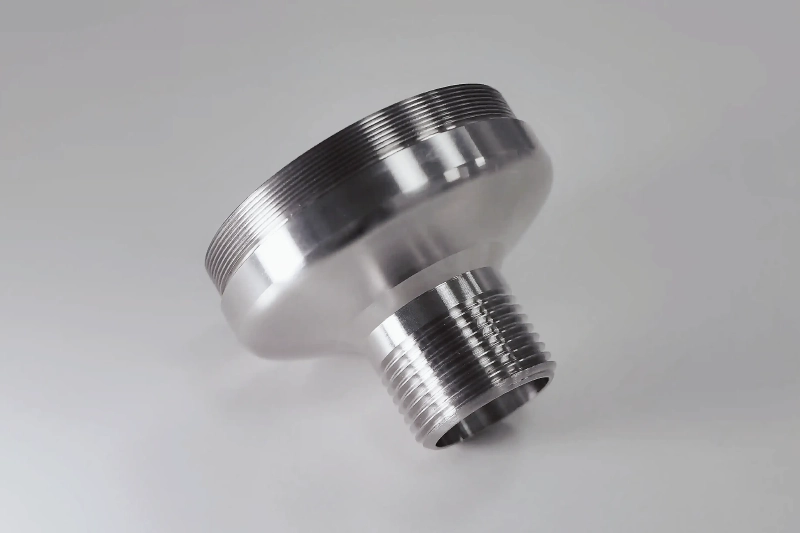

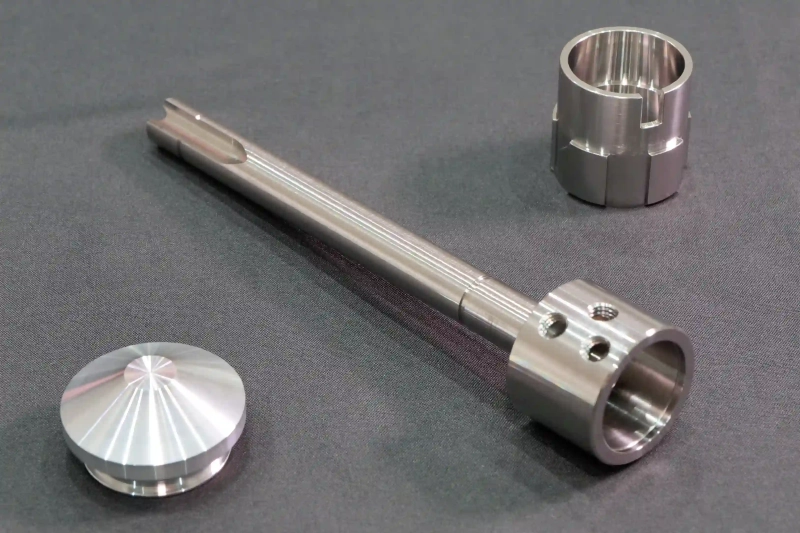

Validate appearance, assembly, and manufacturability with production-intent parts.

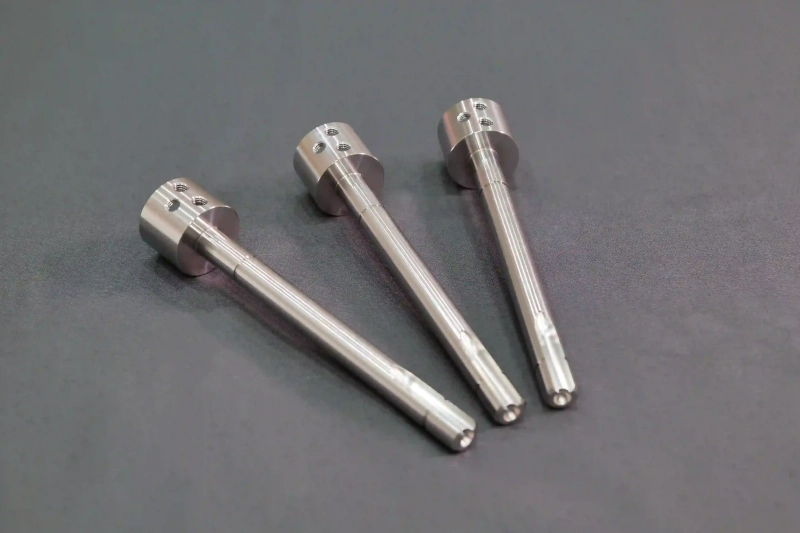

Ensure consistent quality and efficiency before full-scale production.

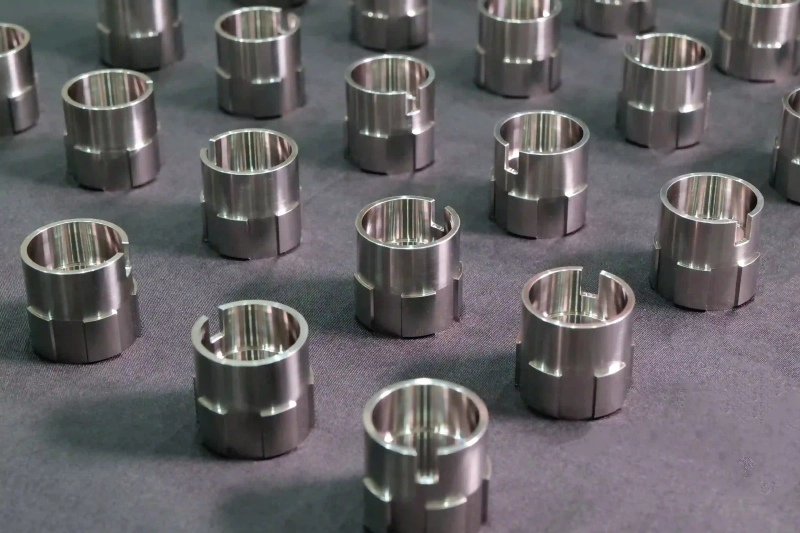

Move seamlessly into stable, repeatable production with full traceability.
Aodson offers surface finishing to enhance appearance, durability, and performance of CNC machined parts — meeting functional and aesthetic needs across industries.
| Surface Finish Option | Process Description | Typical Applications / Benefits |
|---|---|---|
| Polishing | A mechanical process using abrasive compounds to achieve a high-gloss finish. | Used in applications requiring aesthetic appeal, such as medical devices and consumer products. |
| Sandblasting / Bead Blasting | A blasting process that propels fine media to produce a uniform matte or textured surface. | Ideal for uniform, non-reflective textures that improve coating adhesion or visual appeal. Common in automotive and aerospace. |
| Anodizing | An electrochemical process that increases the thickness of the natural oxide layer on the surface of aluminum. | Common in aerospace, automotive, and electronics for corrosion resistance, durability, and aesthetic appeal. |
| Electroplating | A process that uses an electric current to deposit a layer of metal (e.g., nickel, chrome) onto the part surface. | Often used for corrosion resistance, wear resistance, or appearance. Common in automotive and electronic industries. |
| Coating (Powder Coating, PVD) | Application of a thin, protective coating to enhance durability and aesthetic properties. | Used to protect parts from corrosion and wear while providing a durable finish. Common in automotive, electronics, and aerospace. |
| Heat Treatment | A process of heating and cooling metals to alter their physical properties. Can improve surface hardness. | Used for parts requiring increased hardness, strength, and wear resistance, such as gears, shafts, and cutting tools. |
| Passivation | Chemical removal of free iron from stainless steel surfaces. | Enhances corrosion resistance, especially for medical and food-grade parts. |
The table below outlines the typical dimensional tolerances achievable by common CNC machining processes under standard production conditions.
| Machining Process | Typical Tolerance | Surface Roughness | Typical Applications |
|---|---|---|---|
| CNC Milling | ±0.01 – ±0.02 mm | 1.6 – 3.2 μm | High geometric freedom, versatile for complex prismatic features |
| CNC Turning | ±0.005 – ±0.01 mm | 0.8 – 1.6 μm | Rotational parts with good control of roundness and concentricity |
| CNC Grinding | ±0.002 – ±0.005 mm | 0.2 – 0.8 μm | High-precision dimensions, flat surfaces and external diameters |
| EDM (Sinker EDM) | ±0.003 – ±0.005 mm | 0.8 – 1.6 μm | Complex cavities, deep features, and hardened materials |
| WEDM (Wire EDM) | ±0.001 – ±0.003 mm | 0.2 – 0.6 μm | High-precision contours, fine details, and micro features |

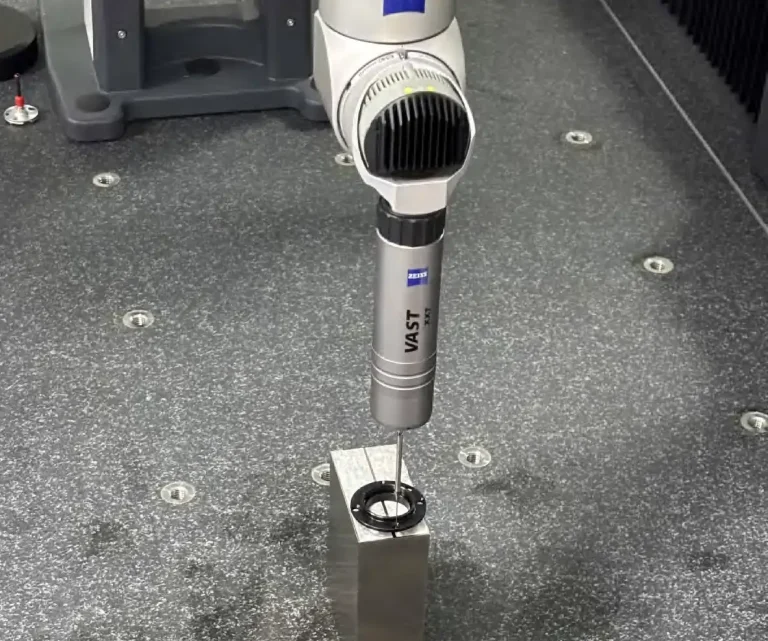

Every CNC machined part at Aodson is verified through a complete metrology and inspection process — from dimensional measurement to surface and material validation — ensuring accuracy, consistency, and full compliance with your drawings.
| Category | Capabilities & Equipment |
|---|---|
| Dimensional Accuracy | Coordinate Measuring Machines (CMM), 2D measuring instruments, height gauges, micrometers, calipers |
| Geometric & Surface Validation | Thread gauges, pin gauges, block gauges, surface roughness testers |
| Material & Composition Analysis | XRF (X-ray Fluorescence Spectrometer) for alloy and coating verification |
| Documentation & Traceability | CMM inspection reports, material certificates (CoC / MTR), and complete dimensional data for every part |
Lead time as fast as 3 days, accelerating your R&D and production progress, easily meet tight deadlines.
Tolerances as tight as 0.005mm, rich experience with advanced 5-axis CNC machines, mill-turn machines, and precision grinding machines, meets a variety of tolerance requirements.
According to your functionality and quantity requirements, develop the optimal manufacturing process, combined with efficient self-owned factories to achieve optimal performance and cost.
From CNC machining to aluminum extrusion and heat treatment to surface finishing, from prototyping to mass production, easily and efficiently customize various parts.
ISO 9001 quality management system certification, equipped with various quality inspection instruments including Zeiss coordinate, process and results can be controlled.
Our engineers collaborate from the start — optimizing designs for manufacturability, improving strength-to-weight ratios, and reducing cost through smarter machining strategies.
