External-Threaded U-Handle for Cabinets and Equipment

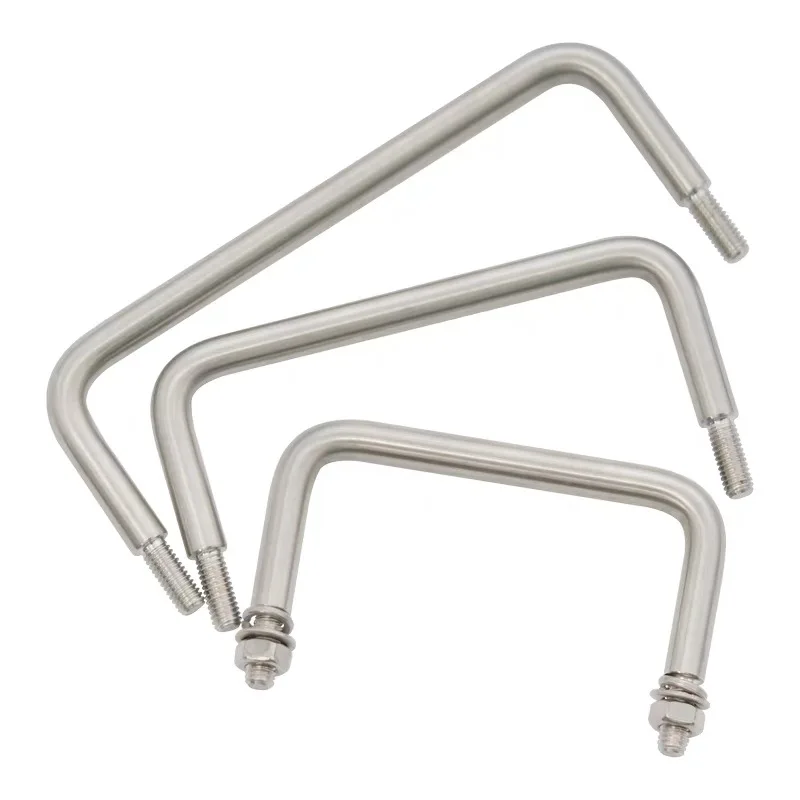

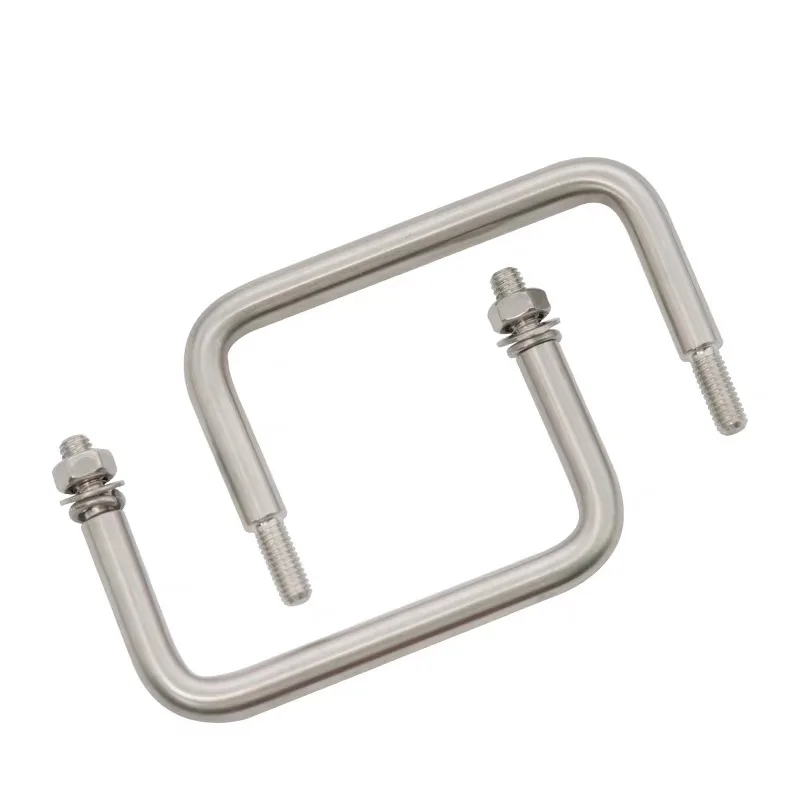

This rigid U-shaped pull handle is formed from round bar and finished with external threads on both mounting ends. It installs through a panel with nuts and washers and can be produced in different heights, spans, rod diameters and thread sizes for cabinets, enclosures, machines and fabricated assemblies.
Reference Configuration
| Material shown | 304 stainless steel, as identified in the supplied supplier listing. |
|---|---|
| Form | Round-bar U-handle with radiused corners and two external threaded mounting ends. |
| Reference options | Supplier option labels include Ø8 mm rod, 55 mm mounting span, 60 or 80 mm handle height and M6 threads. Confirm the required drawing before production. |
| Hardware | Nuts, flat washers and spring washers can be supplied according to the selected configuration. |
| Custom dimensions | Rod diameter, mounting centers, overall height, thread size, thread length, bend radius and end configuration. |
Material Options
| Stainless steel | 304, 304L, 316, 316L, 321, 310S, 904L, 2205 and 2507. |
|---|---|
| Carbon and alloy steel | Q235, Q355, 35, 45, 40Cr and 42CrMo, with coating or plating where required. |
| Aluminum and titanium | 6061, 6063, 7075; TA2, TC4 / Grade 5. |
| Nickel and special alloys | Inconel 600, 625 and 718; Hastelloy C-276; Monel 400; other non-standard alloys subject to material and process review. |
| Surface options | Natural, brushed, polished, passivated, plated, coated or project-specific finish. |
Applications and Ordering
Typical applications include electrical cabinets, machine enclosures, access panels, industrial equipment, vehicle boxes, tool cabinets, doors and custom fabricated housings.
For quotation, provide the material grade, rod diameter, mounting-center distance, handle height, thread specification and length, surface finish, quantity and drawing. Required load and installation panel thickness should also be stated where the handle is load-bearing.
