This custom 304 stainless steel rotating compression door handle latch combines a long lever, square-drive spindle, and mating keeper to pull a door securely against its seal. The over-center compression action is suited to heavy or frequently operated doors where consistent gasket pressure and straightforward manual operation are required. Left- and right-hand versions can be supplied to match the opening direction and installation layout.
Product Specifications and Custom Options
| Product type | Heavy-duty rotating compression door handle latch |
|---|---|
| Reference series | CY-624 / 624-series configuration shown |
| Material | 304 stainless steel |
| Finish shown | Mirror polished |
| Handing | Left-hand and right-hand configurations available |
| Operation | Rotating lever with square-drive spindle and compression keeper engagement |
| Reference dimensions shown | Approximately 142 mm handle length, 90° lever rotation, and adjustable keeper reach; final dimensions require drawing approval |
| Mounting | Countersunk fastener pattern; hole size, spacing, plate geometry, and fasteners can be project-specific |
| Supply options | Handle body, keeper, spindle, or coordinated latch set according to the approved bill of materials |
Product Views

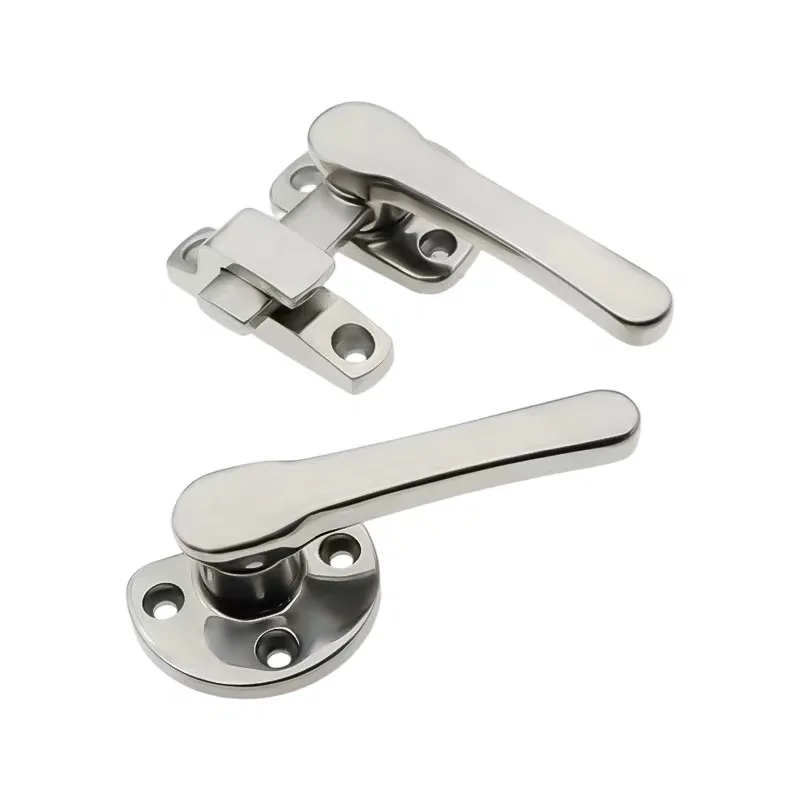

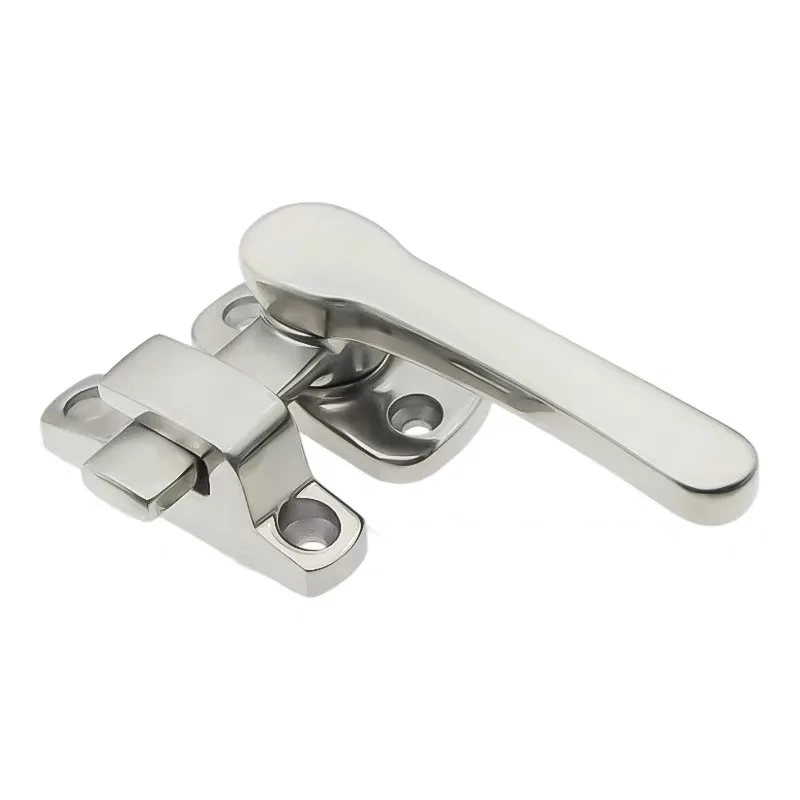

The gallery shows the complete component set, the handle and keeper relationship, a close view of the engagement area, and the polished lever mounting plate. These views help confirm the operating direction and installation envelope before final drawings are released.
Design and Ordering Considerations
Compression performance depends on door thickness, gasket compression, keeper position, spindle length, frame geometry, and opening direction. Please provide the door and frame drawing, required left- or right-hand operation, panel thickness, seal compression target, mounting-hole pattern, and available installation clearance.
The reference dimensions shown in the supplied specification images describe one configuration only. They should not be used to drill a production door or frame until the project drawing and physical interface have been approved.
Key Features
- Long lever provides practical operating force for heavy-duty door applications
- Rotating compression action helps draw the door against a perimeter seal
- 304 stainless steel construction with smooth polished surfaces
- Left- and right-hand configurations support different opening directions
- Square-drive spindle and keeper geometry can be coordinated to door thickness
- Custom mounting patterns, spindle lengths, keeper reach, and finishes available from drawings
Typical Applications
- Acoustic and sound-insulated doors
- Airtight and dust-control doors
- Cold-room and insulated access doors
- Industrial equipment enclosures and machinery guards
- Marine, utility, and service access panels subject to application review
Quality Control and Inspection
Inspection can include material verification, casting and machining review, spindle fit checks, lever rotation testing, keeper engagement inspection, mounting-pattern measurement, surface-finish inspection, and trial assembly. Critical interfaces are checked against the approved drawing. Learn more about AODSON quality control and assurance.
OEM Customization and RFQ Requirements
For an accurate quotation, provide the door type, panel thickness, left- or right-hand requirement, handle quantity, spindle profile and length, keeper reach, mounting-hole layout, compression travel, finish, and operating environment. Where possible, include a section drawing of the door, seal, and frame. Browse related building hardware or request a quote for a custom configuration.
Frequently Asked Questions
Can you supply both left-hand and right-hand handles?
Yes. Left- and right-hand versions are available. The opening direction and viewing side should be marked clearly on the RFQ drawing to avoid handing errors.
Can the spindle and keeper be adjusted for different door thicknesses?
Yes. Spindle length and keeper reach can be reviewed for the door and seal stack-up. Final dimensions are confirmed on the approved drawing.
Are the 142 mm length and 90° rotation fixed?
They describe the reference version shown. Alternative lever lengths, mounting layouts, and operating geometry may be available subject to load and manufacturability review.
