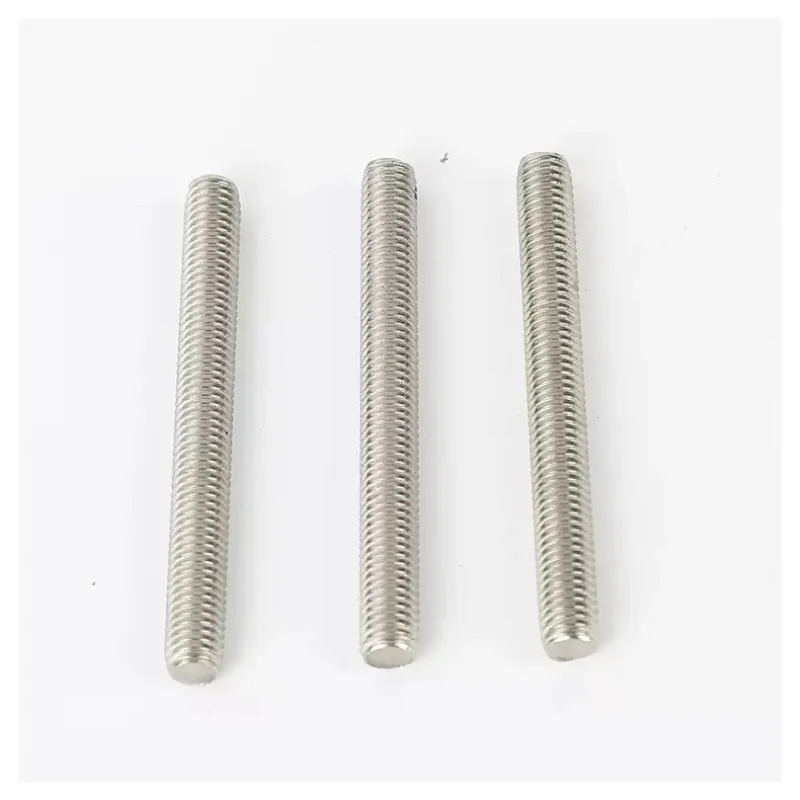

Stainless steel fully threaded rods, also called all-thread rods or threaded bars, provide continuous external threads along the usable length. They are cut or manufactured to specified dimensions for fastening, clamping, anchoring, bracing, machinery, construction hardware, and OEM assemblies.
Product Specifications and Custom Options
| Product type | Fully threaded rod, all-thread rod, or threaded bar |
|---|---|
| Material | Stainless steel or project-specified corrosion-resistant alloy |
| Thread standards | Metric coarse or fine, UNC, UNF, or drawing-specific |
| Dimensions | Diameter, pitch, length, and thread tolerance to approved specification |
| Ends | Sawn, chamfered, deburred, turned, or project-specific end preparation |
| Finish | Cleaned, passivated, polished, coated, or project-specific |
| Customization | Material grade, size, tolerance, marking, testing, packaging, and cut length |
Thread Form and Assembly Fit
Diameter and pitch alone do not fully define the connection. Thread standard, tolerance class, mating nut, engagement length, surface finish, and any coating must be considered together. For replacement or mixed-standard assemblies, provide a mating component or verified thread designation to prevent incompatibility.
Design and Ordering Considerations
Define the tensile loading, clamp length, service temperature, corrosion environment, installation method, and applicable fastener standard before selecting the material and dimensions. Long rods may also require straightness, runout, and packaging requirements to protect threads during transport.
Key Product Features
- Continuous external thread for adjustable nut positioning
- Custom diameters, pitches, lengths, and tolerance classes
- Optional chamfering, deburring, passivation, polishing, and marking
- Suitable for drawing-based OEM and maintenance programs
Typical Applications
- Structural and architectural fastening
- Machinery frames, fixtures, and equipment supports
- Pipe hangers, clamps, and suspended services
- Marine, chemical, process, and outdoor assemblies
Material and Load Requirements
Material designation does not by itself establish the allowable load. Capacity depends on material condition, thread geometry, tensile area, engagement, mating hardware, installation preload, temperature, fatigue, corrosion, and the governing design standard. Final mechanical properties and acceptance criteria must be stated in the approved purchase specification.
Quality Control and Inspection
Inspection can include material verification, thread ring gauging, diameter and pitch, length, straightness, end condition, surface finish, marking, and lot traceability. Mechanical testing, material certificates, dimensional reports, and project-specific inspection records are available when specified.
OEM Customization and RFQ Information
For an accurate quotation, please provide:
- Thread standard, diameter, pitch, tolerance class, and length
- Material grade, condition, and corrosion environment
- Required strength or applicable product standard
- End preparation, finish, marking, and inspection
- Quantity, packaging, destination, and repeat demand
Request a quote for threaded rods, browse related industrial fasteners, or review AODSON CNC machining and quality control capabilities.
Frequently Asked Questions
Can threaded rods be supplied in custom cut lengths?
Yes. Diameter, pitch, overall length, thread tolerance, end chamfer, material, finish, and marking can be produced to an approved specification.
Which stainless steel grade should be selected?
The grade should be chosen from the required strength, temperature, corrosion environment, mating materials, and applicable customer standard. Final selection is confirmed during technical review.
What information is needed for an accurate quotation?
Please provide the complete thread designation, tolerance class, length, material grade, mechanical-property requirement, finish, quantity, inspection, packaging, and delivery destination.
