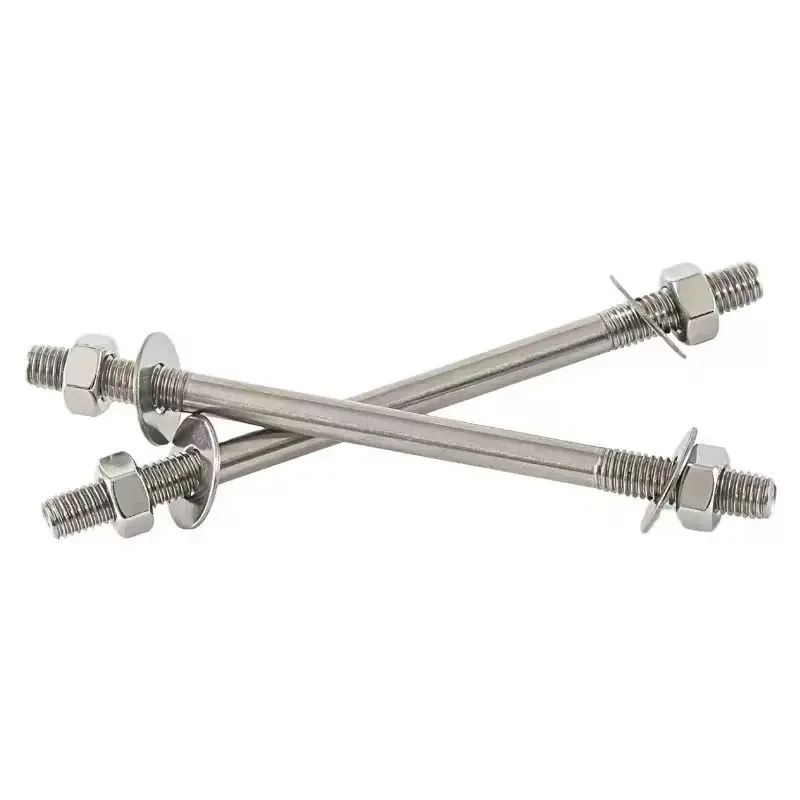

stainless steel double-ended threaded stud bolt assemblies provide a clean, adjustable connection for parts that must be secured from both sides. Each stud combines threaded ends with a smooth center shank and can be supplied with matching hex nuts and flat washers. The M4 × 60 mm configuration shown is a reference size; diameter, overall length, thread engagement and hardware combinations can be produced to the approved drawing.
Product Specifications and Custom Options
| Product type | Double-ended threaded stud bolt assembly |
|---|---|
| Material | Stainless steel grade selected for corrosion resistance, strength and operating environment |
| Reference size shown | M4 × 60 mm overall length; other diameters and lengths available to drawing |
| Configuration | Smooth center shank, threads at both ends, hex nuts and flat washers |
| Manufacturing | Bar cutting and forming with rolled or machined threads, deburring and cleaning |
| Finish | Cleaned, passivated, polished or project-specific |
| Customization | Thread size, overall length, thread length, center-shank diameter, nut and washer combination, packaging and inspection |

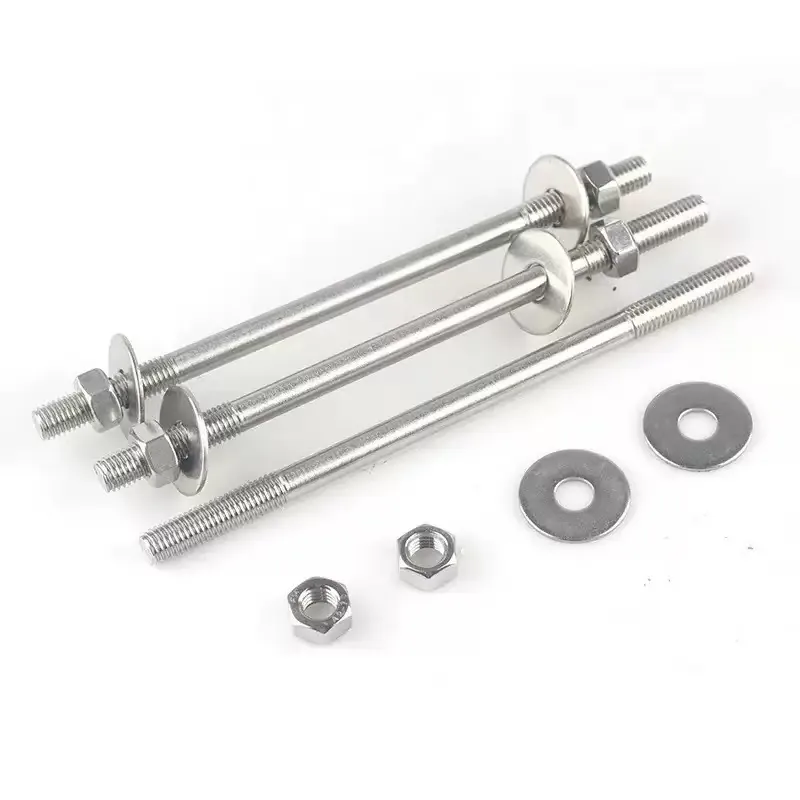

Product Views
Design and Ordering Considerations
Overall length alone does not define the assembly. Confirm thread standard and pitch, thread length at each end, unthreaded center length, shank diameter, nut engagement and washer dimensions. When the stud passes through a wall, panel or bracket, the clamping thickness and required adjustment range should also be stated. AODSON reviews these interfaces before production so the supplied hardware matches the intended stack-up.
Key Product Features
- Threads on both ends for two-sided adjustment and clamping
- Smooth center section for controlled positioning through panels or supports
- Matching stainless steel nuts and flat washers available as a set
- Custom thread lengths, overall lengths and packaging quantities
- Corrosion-resistant construction for indoor or outdoor assemblies when the appropriate grade is specified
Typical Applications
- Through-wall and through-panel fastening
- Suspended supports and lightweight mounting systems
- Equipment guards, brackets and fixture assemblies
- Electrical, signage and display support hardware
- OEM replacement and maintenance fastener kits
Quality Control and Inspection
Inspection can include material verification, overall length, thread diameter and pitch, thread length, straightness, nut fit and surface condition. Dimensional reports, material certificates and project-specific packaging can be arranged when stated in the request for quotation.
OEM Customization and RFQ Information
AODSON supplies drawing-based stainless steel fasteners and hardware assemblies for OEM buyers, distributors and project contractors. For an accurate quotation, send:
- Thread standard, diameter and pitch
- Overall length and thread length at each end
- Stainless steel grade or service environment
- Required nuts, washers and assembly method
- Target quantity, inspection, packaging and destination country
Request a quotation for custom threaded stud bolts or review related AODSON resources: Industrial Fasteners, CNC Machining, and Quality Control.
Frequently Asked Questions
Can the thread size and overall length be customized?
Yes. The illustrated M4 × 60 mm assembly is a reference configuration. Thread diameter, pitch, end-thread lengths, smooth center length and overall length can be manufactured to an approved drawing or sample.
Are nuts and washers included?
They can be supplied as a complete set, preassembled on the stud or packed separately. Confirm the required quantity and washer dimensions for each stud.
Which stainless steel grade should be specified?
The selection depends on corrosion exposure, required strength, temperature and applicable standards. Provide the operating environment and any material specification so the suitable grade can be confirmed before quotation.
