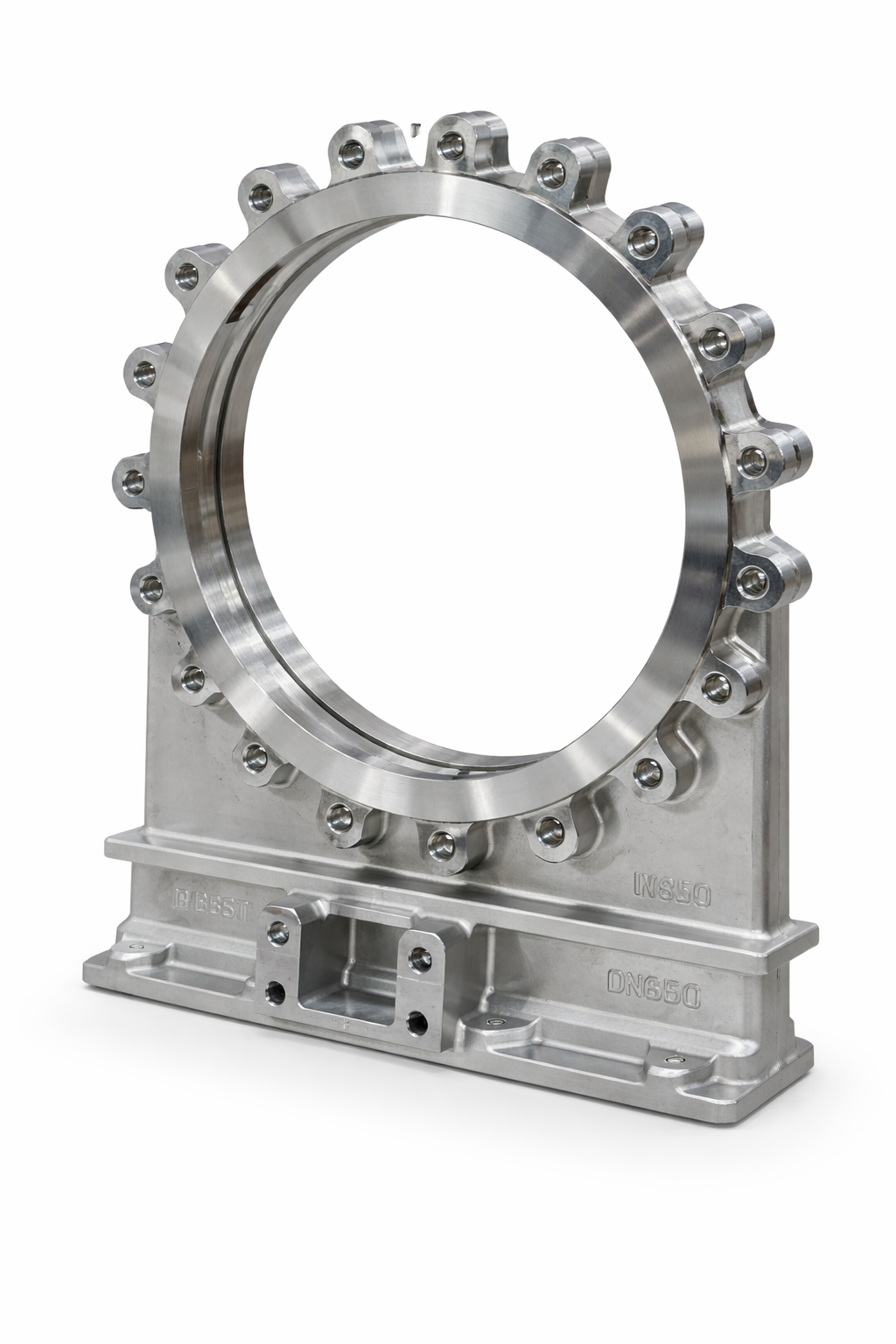

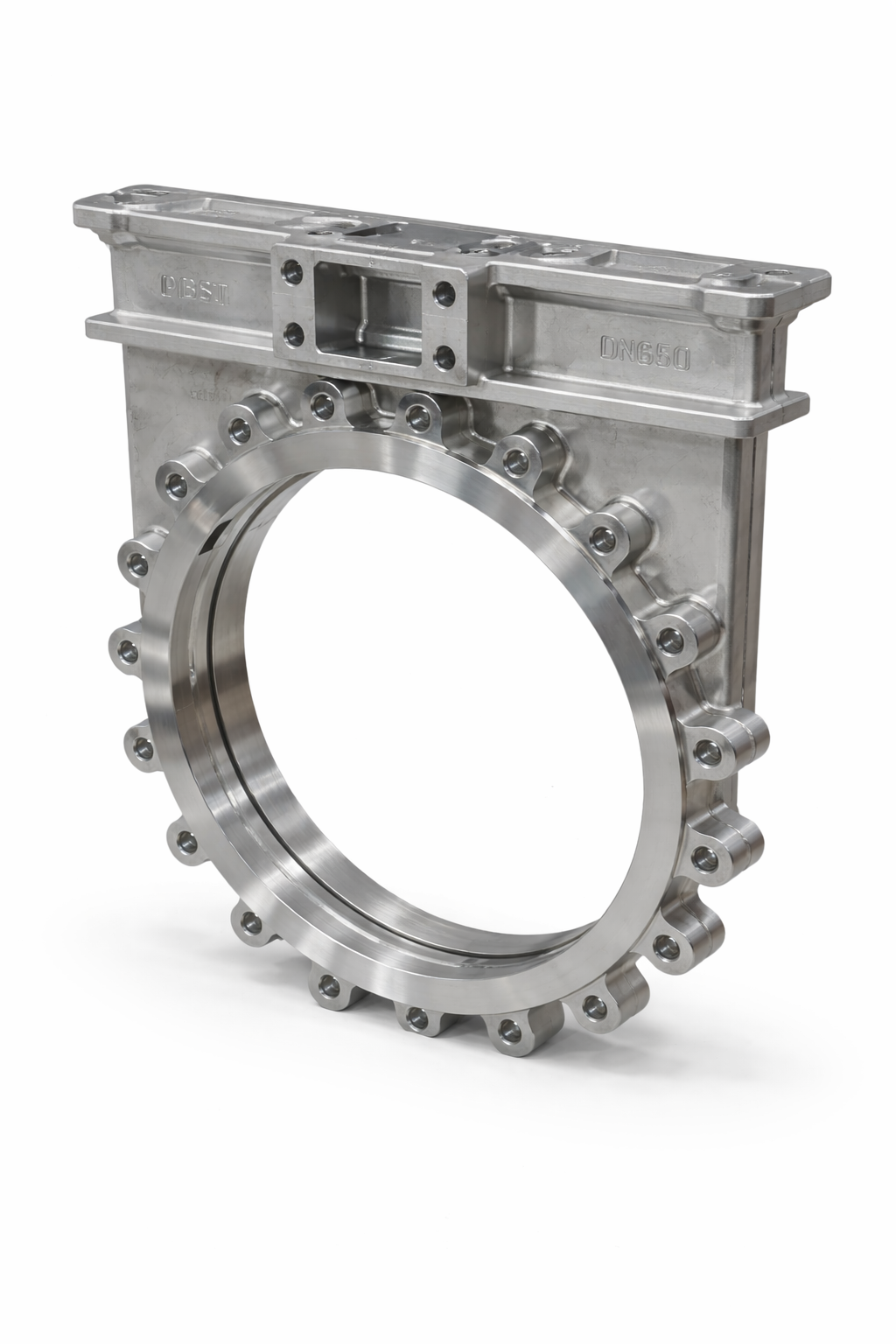

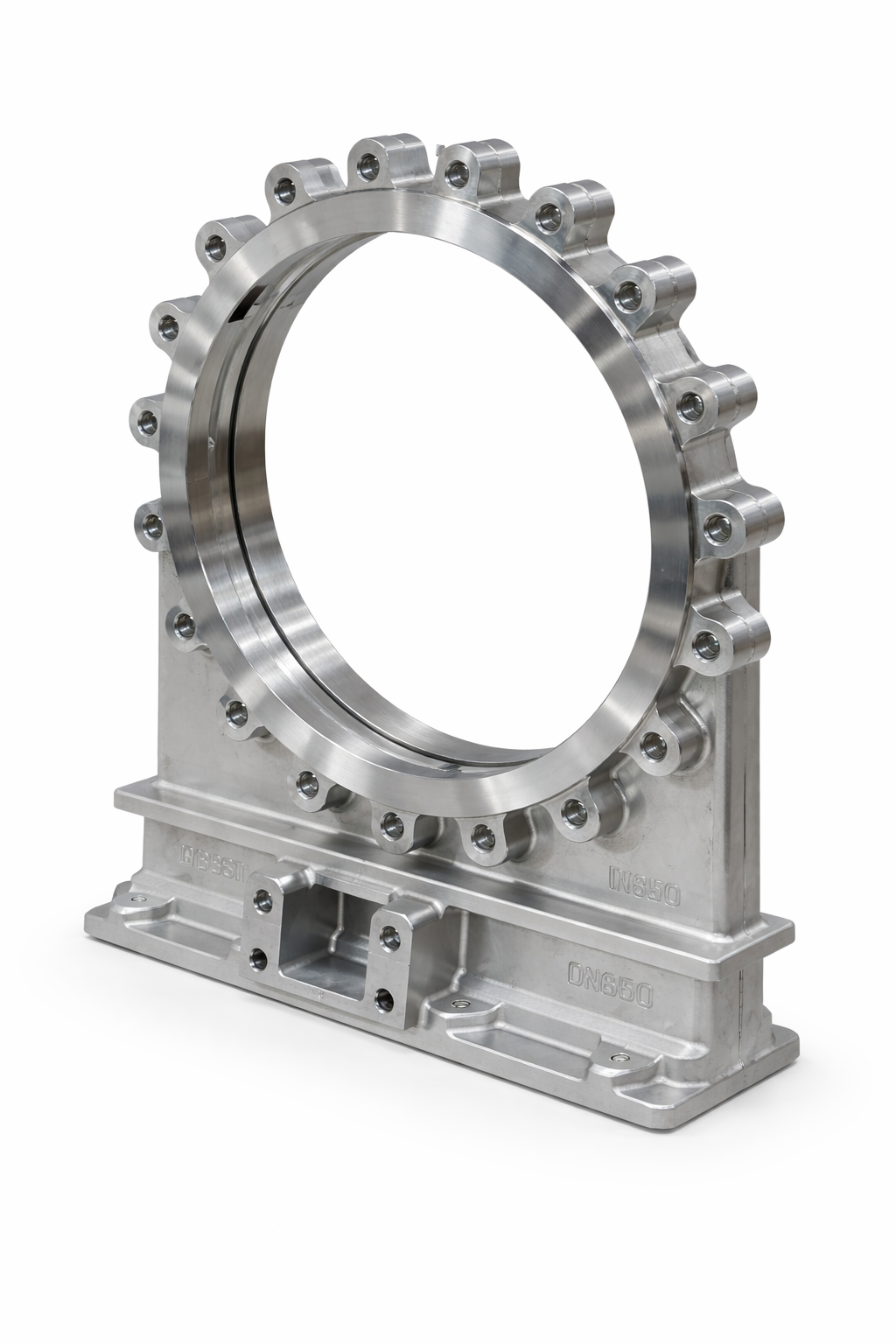

CF8M stainless steel knife gate valve body – This CF8M stainless steel knife gate valve body is an OEM cast and machined component for severe-service flow-control assemblies. The one-piece body integrates the flange, gate passage, mounting features and internal flow path before critical interfaces are finished by CNC machining.
Product Specifications and Custom Options
| Product type | Knife gate valve body casting |
|---|---|
| Material | CF8M, CF8, duplex stainless steel or alloy specified by the valve manufacturer |
| Manufacturing | Investment casting with CNC machining of flanges, gate path and sealing interfaces |
| Finish | Blasted, pickled and passivated, machined or project-specific |
| Applications | Knife gate valves for wastewater, slurry, pulp and industrial process systems |
| Customization | Dimensions, interfaces, finish and inspection based on drawing or approved sample |
Product and Interface Review
Valve size, flange standard, pressure class, gate thickness, seat design and face-to-face dimension must be supplied by the valve manufacturer. Machining datums are planned around flange alignment and the gate path. Leakage class and pressure performance belong to the complete valve assembly and require customer-defined testing.
Key Manufacturing Features
- One-piece stainless valve body casting
- Machined flange and gate interfaces
- CF8M and duplex alloy options
- Large and custom valve geometries from drawings
Materials, Manufacturing and Surface Finish

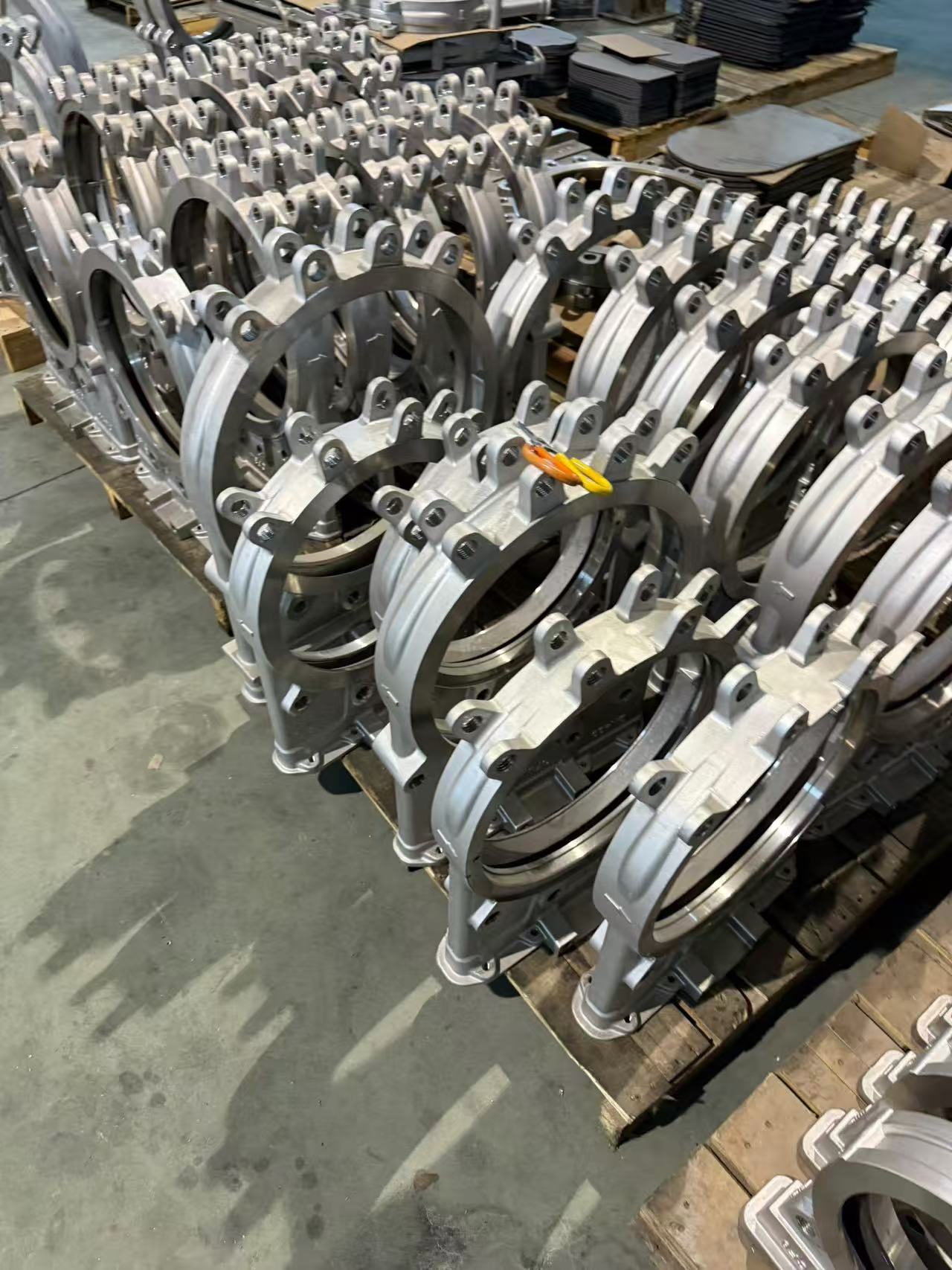

Investment casting forms the valve body, flange and guide geometry with machining allowance on functional surfaces. CNC machining then controls flange faces, bolt patterns, gate travel and sealing interfaces. Material route and any heat treatment are matched to the customer’s corrosion and mechanical requirements.
The proposed route for this knife gate valve body casting is Investment casting with CNC machining of flanges, gate path and sealing interfaces. Final material, tolerances, finish and testing remain subject to the approved drawing and purchase specification.
Typical Applications
- Wastewater knife gate valves
- Pulp and paper process lines
- Mining and slurry systems
- Industrial isolation valves
Quality Control and Approval
Inspection can include chemical composition, dimensional reports, flange and gate-path checks, surface examination and NDT defined by the purchase specification. Hydrostatic, seat or shell testing is performed only under agreed pressure, duration and acceptance criteria.
OEM Customization and RFQ Information
AODSON supports drawing-based and sample-based manufacturing for OEM buyers, distributors and engineering teams. For a practical quotation, send:
- 2D drawing and 3D model, or clear sample photographs
- Material grade and operating environment
- Critical dimensions, interfaces and inspection requirements
- Target quantity and expected repeat demand
- Surface finish, packaging and destination country
Request a quotation for this component or review related AODSON capabilities: Pump and Valve Components, Investment Casting, CNC Machining.
Frequently Asked Questions
Can this knife gate valve body casting be customized?
Yes. Geometry, interfaces, material, finish and inspection can be produced from an approved drawing or sample. Feasibility is reviewed before quotation or tooling.
Which material grades are available?
The current range is CF8M, CF8, duplex stainless steel or alloy specified by the valve manufacturer. Final selection should consider corrosion, strength, temperature, wear, conductivity and applicable customer standards.
What is needed for an accurate quotation?
Please provide geometry, material, quantity, critical tolerances, finish and delivery requirements. Describing the application helps engineering identify risks that may not be visible on the drawing alone.
