This custom sanitary quick-release clamp is manufactured from 2205 duplex stainless steel for hygienic pipe connections requiring higher strength and improved resistance to chloride-bearing environments. Its two-piece hinged ring opens around compatible sanitary ferrules, while the threaded wing nut draws the clamp profile evenly onto the joint. Light, medium-duty thickened, and heavy-duty thickened constructions are available to suit different sizes and service conditions.
Product Specifications and Custom Options
| Product type | Two-piece sanitary quick-release pipe clamp |
|---|---|
| Material | 2205 duplex stainless steel |
| Manufacturing | Precision-cast and finished clamp body with machined threaded closure components |
| Construction options | Light, medium-duty thickened, and heavy-duty thickened versions |
| Closure | Hinged ring with adjustable threaded wing nut for hand tightening |
| Finish shown | Natural polished stainless surface; project-specific finish available |
| Connection | For compatible sanitary ferrules and gaskets; the ferrule profile and outside diameter must be confirmed |
| Reference tube / ferrule OD options | 38 / 50.5, 51 / 64, 63 / 77.5, 76 / 91, 89 / 106, 102 / 119, 133 / 145, and 159 / 183 mm; verify the selected standard before ordering |
| Custom options | Clamp diameter, ring profile, section thickness, bolt length, wing-nut style, finish, marking, and traceability package |
| Service limits | Allowable pressure and temperature depend on clamp size, construction, ferrules, gasket, assembly, and governing piping standard |
Product Views

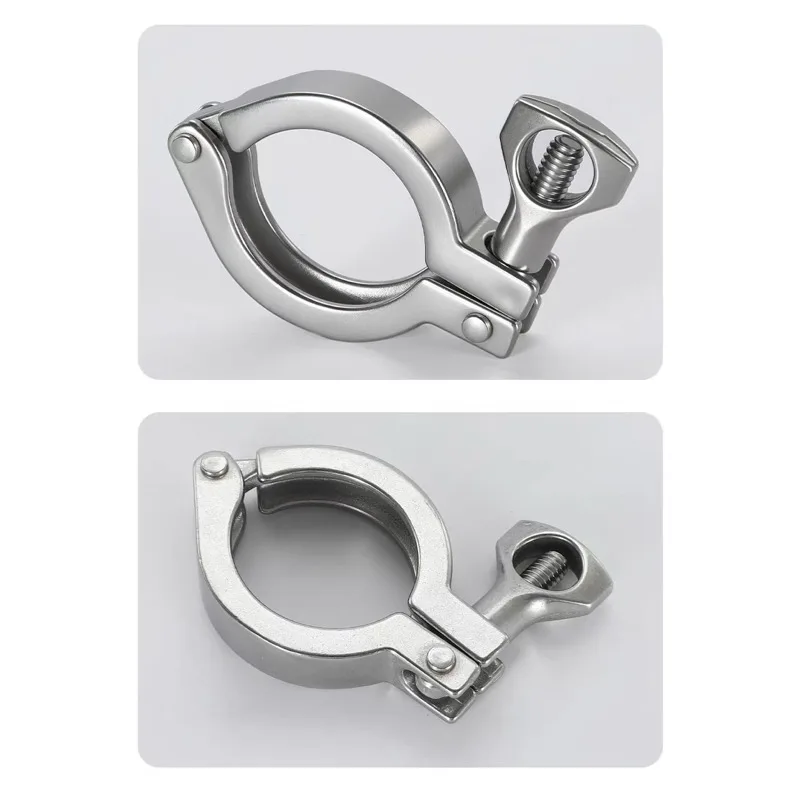

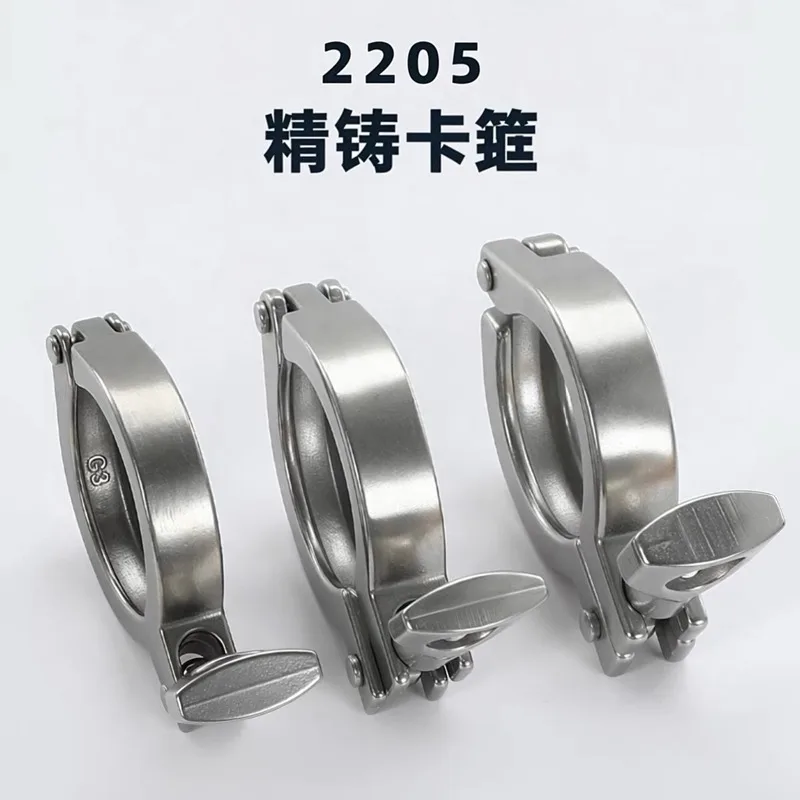

The gallery shows the single clamp profile, front and reverse faces, and a comparison of light, medium-duty, and heavy-duty constructions. The images support initial selection, but production dimensions and duty class must be confirmed against the approved connection drawing.
Design and Ordering Considerations
Select the clamp by the mating ferrule profile and outside diameter rather than nominal tube size alone. Please identify the sanitary connection standard, tube and ferrule dimensions, gasket material, design pressure, service temperature, chloride exposure, cleaning chemicals, installation frequency, and preferred construction class.
The complete joint—not the clamp alone—determines the safe pressure and temperature limits. Compatibility and duty classification should be verified by the piping-system designer before installation.
Key Features
- 2205 duplex stainless steel combines high strength with resistance to chloride stress-corrosion cracking
- Two-piece hinged construction opens quickly around installed sanitary ferrules
- Threaded wing-nut closure supports tool-light assembly and maintenance
- Light, medium-duty thickened, and heavy-duty thickened configurations available
- Precision-cast ring geometry provides consistent ferrule engagement
- Custom sizes, profiles, closures, finishes, and documentation available from drawings
Typical Applications
- Hygienic process lines exposed to chlorides or aggressive cleaning media
- Food, beverage, dairy, and brewery piping
- Pharmaceutical, biotechnology, and cosmetic equipment
- Chemical-processing and saline-water systems
- Marine-process skids, tanks, pumps, valves, and removable pipe connections
Quality Control and Inspection
Inspection can include positive material identification, heat and traceability review, clamp-profile and diameter checks, hinge movement testing, threaded closure inspection, trial assembly on a reference ferrule, surface-finish review, and visual examination for deformation or sharp edges. Critical features are verified against the approved drawing. Learn more about AODSON quality control and assurance.
OEM Customization and RFQ Requirements
For an accurate quotation, send the sanitary standard, nominal tube size, ferrule outside diameter and profile drawing, required light/medium/heavy construction, gasket type, design pressure and temperature, chloride or chemical exposure, finish, quantity, and documentation needs. Browse related pipe fittings and couplings or request a quote for a project-specific clamp.
Frequently Asked Questions
How is this clamp different from the three-segment model?
This product uses two main hinged ring sections, while the three-segment model uses three articulated sections. The opening behavior, section geometry, and available installation clearance differ, so selection should follow the ferrule and system drawing.
How do I choose light, medium-duty, or heavy-duty construction?
Selection depends on clamp size, joint loading, pressure, temperature, operating environment, opening frequency, and the applicable standard. Provide the full service conditions for engineering review.
Does the nominal tube diameter define the clamp size?
No. The ferrule outside diameter and profile are essential. For example, the reference list pairs a 38 mm tube with a 50.5 mm ferrule OD, but the actual connection standard must be verified before production.
