This custom three-segment sanitary pipe clamp is available in 2205 duplex stainless steel or 2507 super duplex stainless steel for hygienic connections exposed to demanding corrosion conditions. Three articulated ring sections open widely around compatible ferrules and distribute closing force around the joint. The threaded wing-nut closure supports practical assembly, inspection, and cleaning without complex tools.
Product Specifications and Custom Options
| Product type | Three-segment sanitary quick-release pipe clamp |
|---|---|
| Material options | 2205 duplex stainless steel or 2507 super duplex stainless steel |
| Material selection | 2205 suits many chloride-bearing services; 2507 provides higher pitting, crevice-corrosion, and strength capability for more severe environments, subject to engineering review |
| Finish shown | Polished; project-specific surface requirements available |
| Construction | Three hinged clamp segments with threaded closure and hand-tightening wing nut |
| Connection | For compatible sanitary ferrules and gaskets; ferrule profile must be confirmed before ordering |
| Size range | Multiple sanitary tube and ferrule sizes available; final clamp diameter follows the selected connection standard |
| Custom options | Clamp diameter, ring profile, section thickness, bolt length, wing-nut style, duplex grade, finish, and traceability documentation |
| Service limits | Allowable pressure and temperature depend on clamp size, ferrule, gasket, material, and applicable piping standard |
Product Views

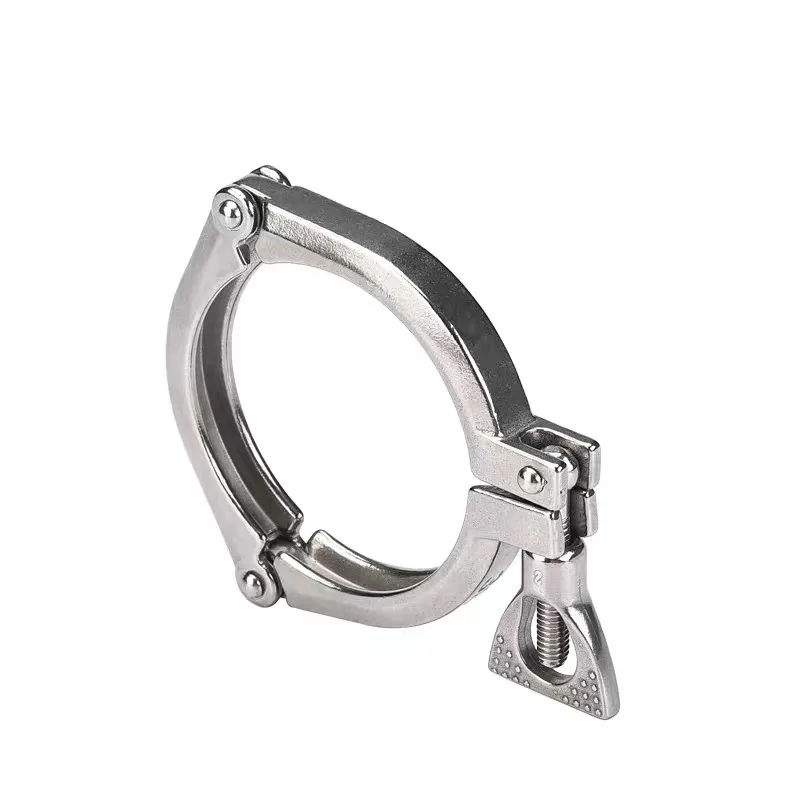

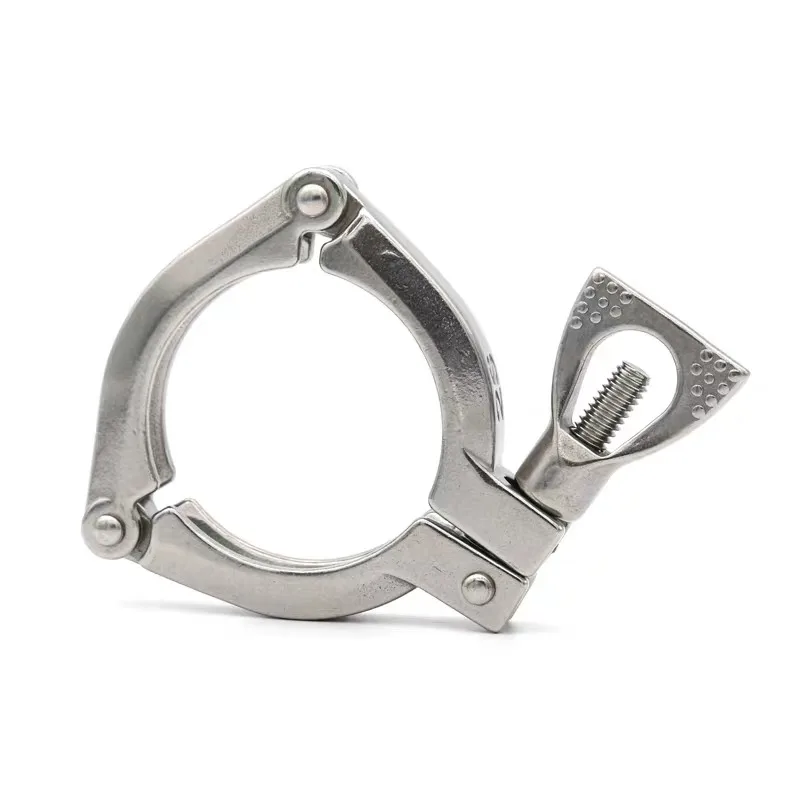

The gallery shows a paired product view, a straight-on view of the articulated ring, and an angled detail of the hinge and closure. These views help confirm the three-section construction and installation clearance around the wing nut.
Design and Ordering Considerations
A sanitary clamp must match the mating ferrule outside diameter and profile, not only the nominal tube size. Please identify the piping standard, tube size, ferrule dimensions, gasket material, service temperature, design pressure, chloride concentration, cleaning chemicals, and required documentation. The clamp alone does not define the pressure rating of the completed joint.
Selection between 2205 and 2507 should consider the complete operating environment, fabrication route, applicable code, and corrosion assessment. Where the connection is used in hygienic or regulated service, also confirm material traceability, surface condition, cleanability, and validation requirements for the complete assembly.
Key Features
- Available in 2205 duplex or 2507 super duplex stainless steel
- Enhanced resistance to chloride stress-corrosion cracking compared with common austenitic grades
- Three articulated segments open widely around installed sanitary ferrules
- Hand-tightened threaded closure supports quick assembly and disassembly
- Reusable construction supports routine inspection, cleaning, and line maintenance
- Custom sizes, profiles, finishes, and documentation packages available from drawings
Typical Applications
- Hygienic process lines exposed to chlorides or aggressive cleaning media
- Food, beverage, dairy, and brewery piping
- Pharmaceutical, biotechnology, and cosmetic equipment
- Chemical-processing and saline-water systems
- Marine-process skids, tanks, pumps, valves, and removable connections
Quality Control and Inspection
Inspection can include positive material identification, heat and traceability review, clamp-diameter and profile checks, hinge movement testing, threaded closure inspection, trial assembly on a reference ferrule, surface-finish review, and visual examination for sharp edges or deformation. Critical dimensions are checked against the approved drawing. Learn more about AODSON quality control and assurance.
OEM Customization and RFQ Requirements
For an accurate quotation, send the required grade (2205 or 2507), sanitary standard, nominal tube size, ferrule outside diameter and profile drawing, gasket type, design pressure and temperature, chloride or chemical exposure, finish, quantity, and documentation needs. Browse related pipe fittings and couplings or request a quote for a project-specific clamp.
Frequently Asked Questions
Should I choose 2205 or 2507?
2205 is suitable for many chloride-bearing industrial services, while 2507 is generally selected for more severe pitting, crevice-corrosion, strength, or chloride conditions. Final grade selection should be based on the actual medium, temperature, pressure, and governing standard.
Can you manufacture clamps for different sanitary standards and sizes?
Yes. Provide the connection standard or a dimensioned ferrule drawing so the ring profile and clamp diameter can be confirmed.
What pressure is this clamp rated for?
A safe rating cannot be assigned from the clamp image alone. The complete joint—including clamp size, ferrules, gasket, duplex grade, temperature, assembly method, and governing standard—must be evaluated before a working-pressure limit is specified.
