Foldable Anti-Slip Step for Vehicles and Equipment

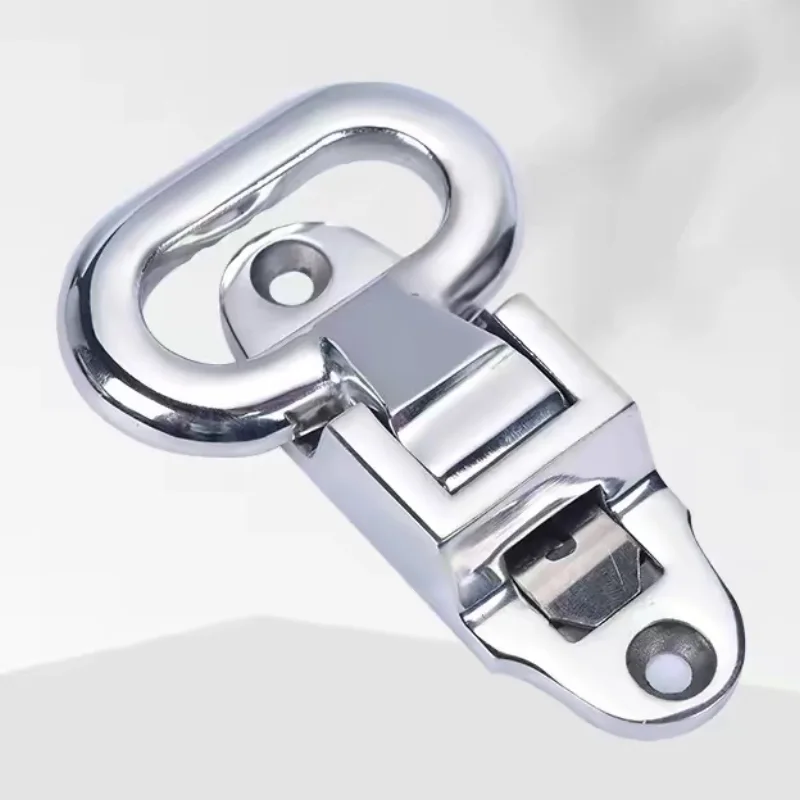

This compact folding step combines an oval stepping loop with a hinged and latched mounting base. It folds against the mounting surface when not in use and is offered with polished or textured stepping faces. The supplied listing identifies 304 stainless steel and small, medium and large configurations.
Reference Sizes
| Small | Reference overall length 122 mm, step width 81 mm, base section 89 mm, mounting-hole diameter 6.9 mm and weight 360 g. |
|---|---|

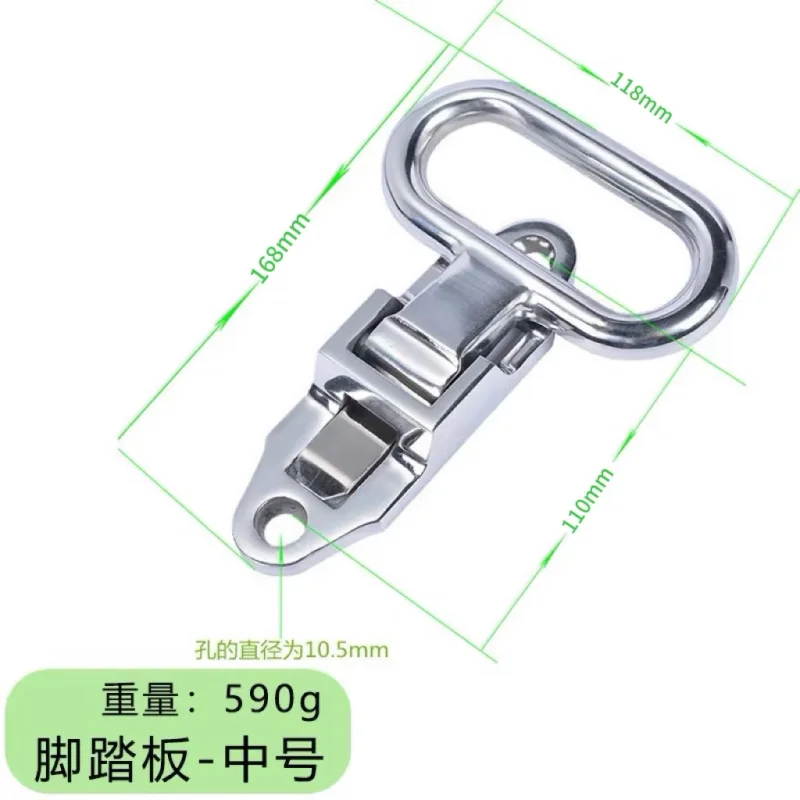

| Medium | Reference overall length 168 mm, step width 118 mm, base section 110 mm, mounting-hole diameter 10.5 mm and weight 590 g. |

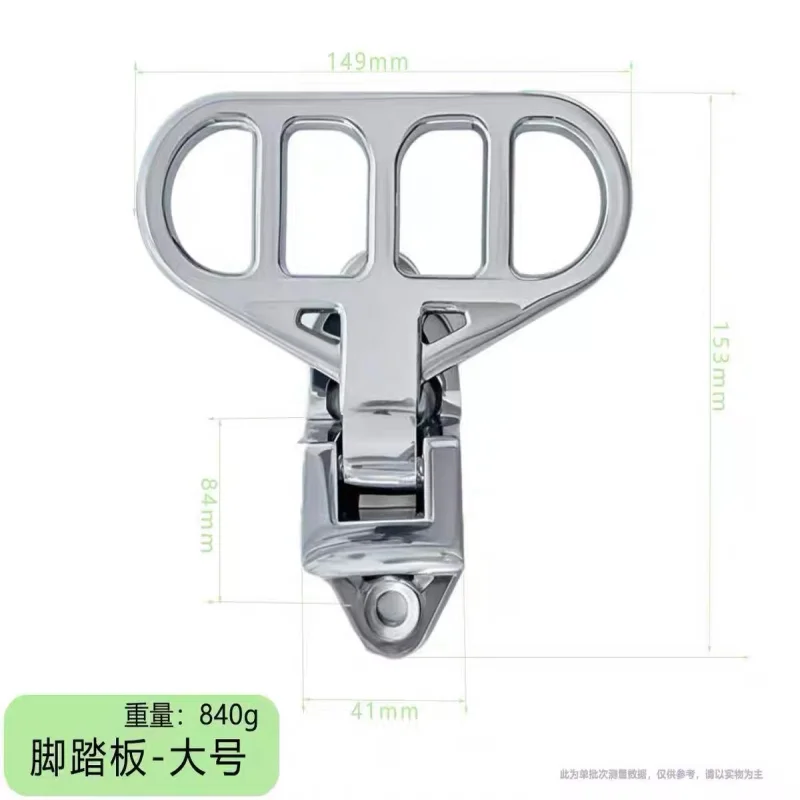

| Large | Reference overall height 153 mm, step width 149 mm, base length 84 mm, base width 41 mm and weight 840 g. |
Materials and Configuration
| Material shown | 304 stainless steel, as stated in the supplied supplier listing. |
|---|---|
| Custom materials | Other stainless steel grades, carbon steel, aluminum alloy, titanium alloy and special alloys can be evaluated against the drawing, load and environmental requirements. |
| Mechanism | Folding step with pivoting body, latch and fixed mounting base. |
| Step surface | Smooth polished or textured anti-slip face, depending on the selected configuration. |
| Mounting | Through-hole base for bolted installation; fasteners and backing plates to be specified separately. |
| Custom options | Size, hole pattern, surface texture, finish, markings and mounting arrangement to drawing review. |
Applications and Ordering
Typical enquiries include RVs, off-road vehicles, service trucks, cargo boxes, special-purpose vehicles, access panels and equipment housings. Confirm mounting structure, installation clearances and folded projection before selection.
No working-load rating is established by the photographs. Provide the required static and dynamic load, safety factor, installation orientation, mounting substrate, corrosion environment and test or certification requirements for quotation.
