Stainless Steel Wire Rope for Cable Assemblies

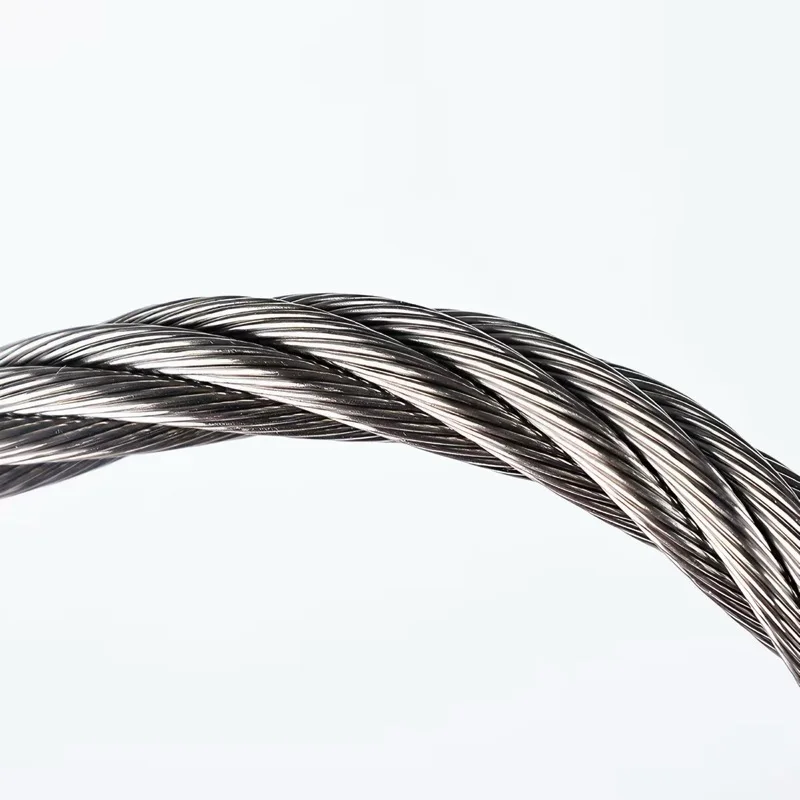

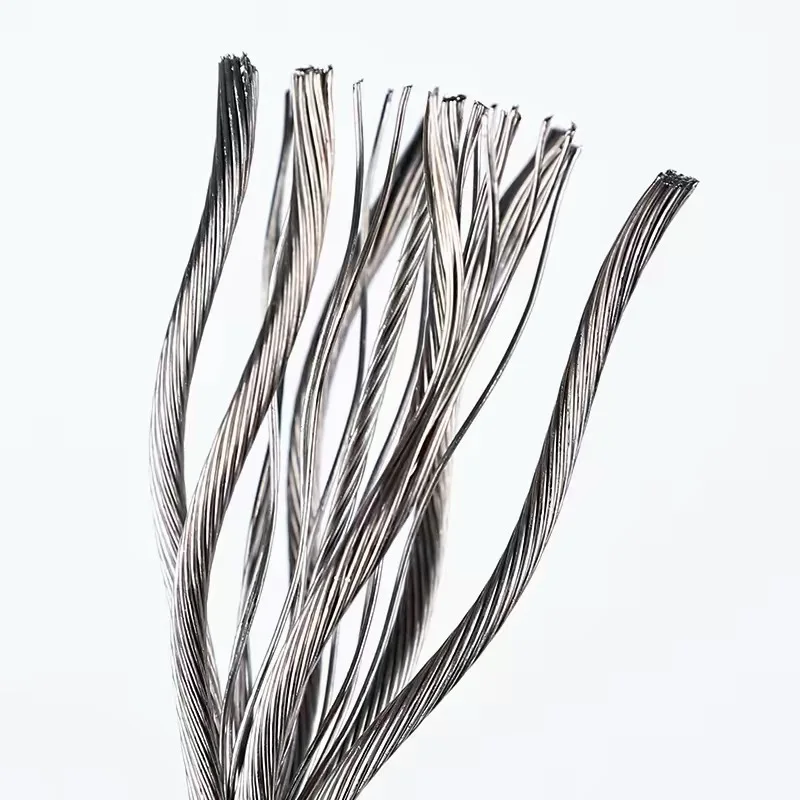

This product reference shows stainless steel wires assembled into twisted strands, with several rope diameters and wooden-reel packaging pictured. For a useful quotation, specify the rope construction as well as its diameter: a photograph alone does not establish the exact strand count, core, strength grade or rated capacity.
Reference Specifications
| Parameter | Reference and ordering requirement |
|---|---|
| Product | Stranded stainless steel wire rope |
| Material options | 304 / 316 listed in the supplied supplier reference. Confirm the required alloy and any material documentation with the quotation. |
| Diameter references | 0.8, 1, 1.5, 2, 2.5, 3 and 4 mm listed in the reference. Availability and diameter tolerance must be confirmed for the selected construction. |
| Strand construction | A 7 × 7 option appears in the reference thumbnails; it is not established for every photographed diameter. Specify the required construction explicitly. |
| Surface | Uncoated metallic appearance as pictured; no polymer coating is shown. |

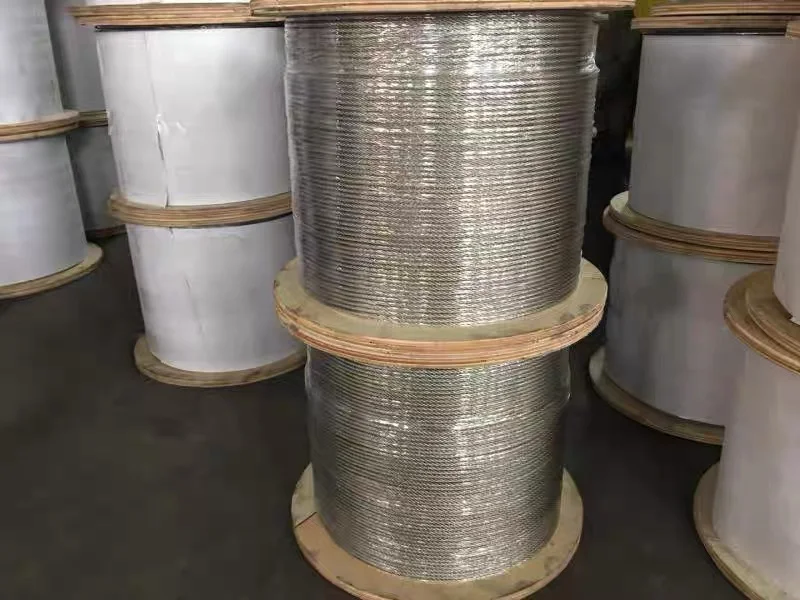

| Presentation | Wooden reels pictured. Confirm length per reel, total length, packing and any cut-length requirement. |
| Ends and fittings | Bare rope samples shown. No end fittings, completed terminations or fixing accessories are included by implication. |
| Performance data | Minimum breaking force, working load, test standard and certification are not established by these images and require separate confirmation. |
Define the Rope and Its Installation Together
- Size and construction: Provide nominal diameter, tolerance, strand arrangement, core type and lay requirements where specified by your drawing.
- Operating conditions: Describe whether the rope remains static or moves, the environment, contact with pulleys or guides, and any bending requirements.
- Assembly interfaces: Provide the end-fitting drawing or termination specification if the enquiry covers more than bare rope.
- Supply format: State total metres, reel length, quantity and delivery destination.
Application Scope
Enquiries may cover general-purpose cable assemblies, tensioning arrangements and utility lines. Suitability depends on the complete installation and its specified performance requirements. This listing does not establish approval for lifting, fall protection, personnel support or other safety-critical service. Such applications require documented selection and verification for the complete assembly.
Inspection and Documentation
Include the required checks in the purchase specification: diameter and tolerance, construction, surface condition, supplied length, reel identification and material grade. If a test report, minimum breaking-force verification or traceability record is required, request it before ordering so availability and scope can be confirmed. A single caliper photograph is a sample reference, not a batch inspection certificate.
See AODSON quality-control capabilities for broader project inspection information.
Frequently Asked Questions
Are all the pictured ropes 7 × 7 construction?
That is not confirmed. The supplier reference mentions a 7 × 7 option, but the exact construction must be matched to the selected diameter and order specification.
Can the diameter be used to determine safe working load?
Not from this listing. No working-load rating is supplied here. Provide the application and required performance documentation for review rather than relying on diameter or marketplace claims alone.
Is the price for a complete reel?
This page is quotation-based and carries no marketplace price. Specify metres per reel, number of reels, material and construction so the quotation has a clear unit and scope.
Request a Wire Rope Quote
Send material grade, diameter, construction, required length, reel or cut-length format, intended use, any fitting drawings, test requirements and destination. We can then review the requested specification and confirm the quotation scope.
