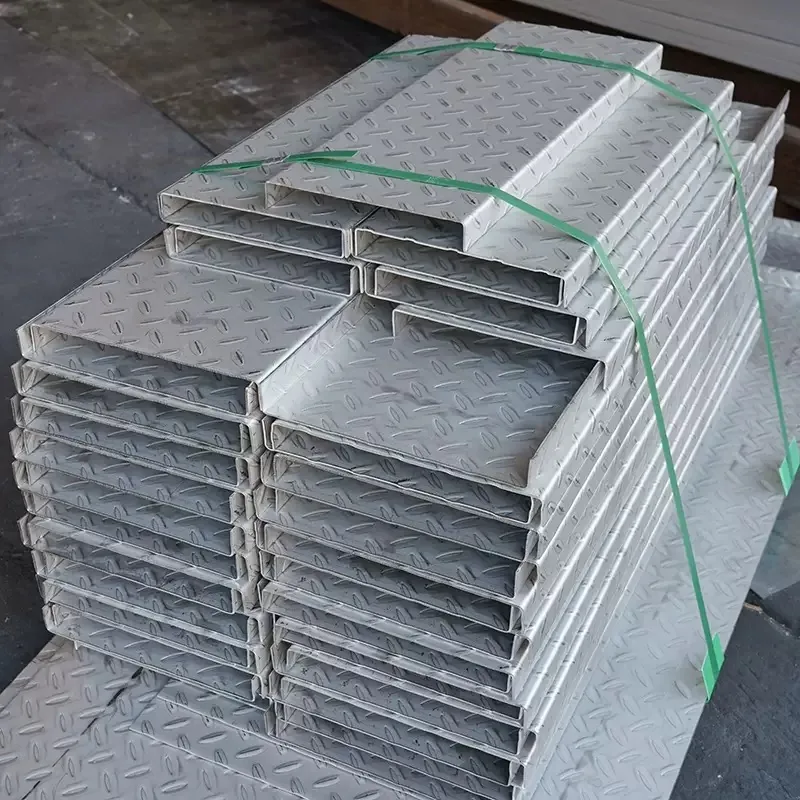

custom formed stainless steel checker plate channels combine a raised anti-slip surface with drawing-controlled sheet-metal geometry. Flat checker plate is cut to size and press-brake formed into channels, covers or tray-style sections for industrial access, equipment and OEM assemblies. Material grade, thickness, pattern orientation and finished dimensions are confirmed against the approved drawing.
Product Specifications and Custom Options
| Product type | Formed stainless steel checker plate channel or cover |
|---|---|
| Material | Stainless steel grade selected for corrosion resistance, strength and service environment |
| Surface | Raised checker or tread pattern for additional grip |
| Manufacturing | Sheet cutting, edge preparation and press-brake forming |
| Geometry | Custom width, length, thickness, channel depth, flange size and bend angle |
| Finish | Mill finish, cleaned, passivated or project-specific |
| Supply format | Individual parts, matched batches, kits or project packaging |

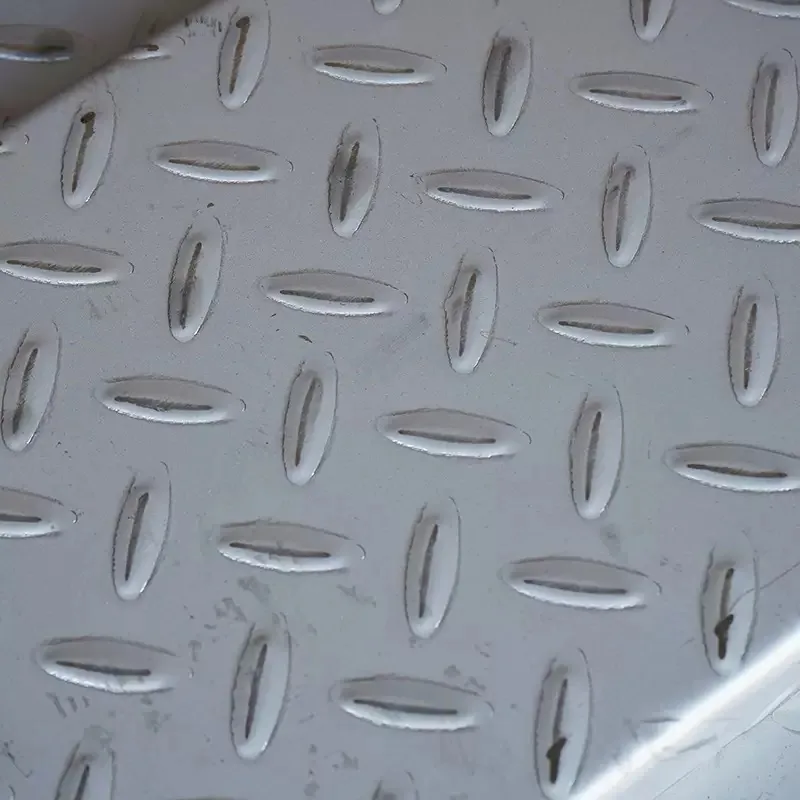

Anti-Slip Surface Pattern
The raised pattern helps improve traction and also stiffens the sheet surface. Pattern type, direction and appearance can influence forming orientation, bend lines and the finished visible face. These details should be defined before cutting so parts remain consistent across the batch.
Design and Manufacturing Review
Channel width, depth, flange dimensions, internal bend radius and overall straightness determine fit at installation. AODSON reviews the developed blank, grain and pattern direction, bending sequence and tool access before production. Hole patterns, cut-outs, notches, welded brackets and mounting features can be added when shown on the approved drawing.
Key Product Features
- Raised stainless steel surface for improved slip resistance
- Folded channel geometry for covers, trays and structural skins
- Custom dimensions, thicknesses, bend angles and edge details
- Corrosion-resistant construction when the appropriate grade is specified
- Batch production with drawing-based dimensional inspection
Typical Applications
- Industrial walkway and stair components
- Equipment platforms, covers and access panels
- Machine guards and protective sheet-metal housings
- Vehicle, trailer and transportation floor components
- Architectural and OEM anti-slip assemblies
Quality Control and Inspection
Inspection can include material verification, sheet thickness, overall length and width, channel depth, flange size, bend angle, straightness, surface condition and pattern orientation. First-article approval and dimensional reports can be arranged for repeat programs.
OEM Customization and RFQ Information
For a practical quotation, send:
- 2D drawing or a dimensioned sketch
- Required stainless steel grade and sheet thickness
- Overall size, bend geometry and tolerances
- Checker pattern and visible-face orientation
- Cut-outs, holes, welding or additional fabrication requirements
- Target quantity, packaging and destination country
Request a quotation for custom checker plate channels or review related AODSON resources: Metal Stamping, CNC Machining, and Quality Control.
Frequently Asked Questions
Can channel dimensions and sheet thickness be customized?
Yes. Width, length, channel depth, flange size, bend angle, bend radius and thickness can be produced to an approved drawing, subject to forming feasibility.
Which stainless steel grade is suitable?
The choice depends on corrosion exposure, required strength, fabrication route and applicable standards. Provide the operating environment and material requirement so the grade can be confirmed before quotation.
Can holes, notches or welded features be added?
Yes. Laser-cut holes and profiles, notches, brackets and welded details can be included when their position, tolerance and finish are defined on the drawing.
