AODSON offers custom stainless steel oval and flat oval tubes for furniture frames, architectural metalwork and fabricated components. An elliptical profile provides a continuously curved outline; a flat oval (obround) profile combines two straight faces with rounded sides. Choose the section to suit the appearance, available space and connection details of your assembly.
Product Specifications and Custom Options
| Item | Options and ordering notes |
|---|---|
| Cross-section | Oval / elliptical and flat oval / obround; profile subject to drawing approval |
| Material | 201, 304 or 316L stainless steel by enquiry; specify the required grade when ordering |
| Dimensions | Outside width × outside height × wall thickness; tolerances agreed against the drawing |
| Length | Specify required tube length, cut lengths and quantity per size |
| Surface | Brushed or polished appearance; agree finish requirements using a sample where necessary |
| Secondary processing | Cutting, laser-cut features, bending and colour finishing can be reviewed for the specific profile and order |
| Other profiles | Grooved and special-shaped sections by enquiry, subject to tooling and manufacturing review |
| Supply basis | Quotation by specification and quantity; grade, dimensions, manufacturing route and lead time confirmed before order |
The photographs illustrate tube profiles and surface appearance, not a certified material grade or dimensional specification. No pressure rating is assigned on this page.

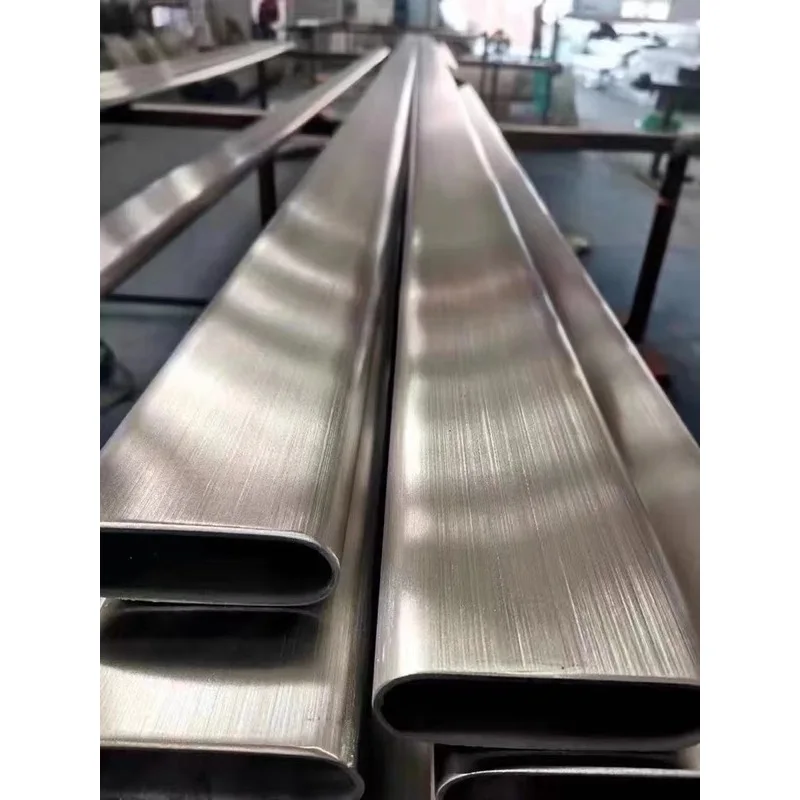

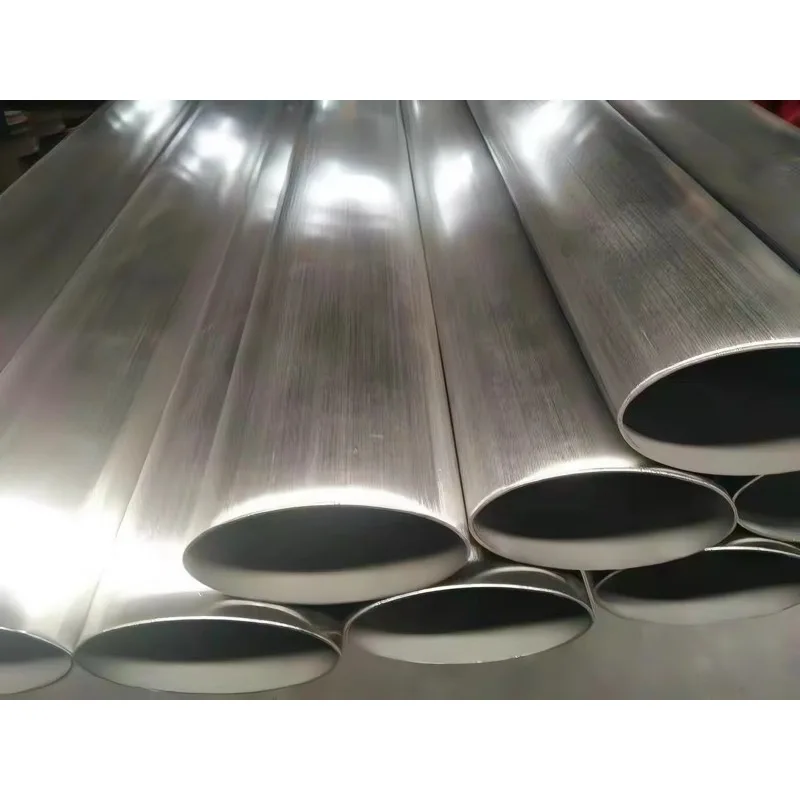

Oval and Flat Oval Product Views
Design and Ordering Considerations
Include a dimensioned cross-section rather than specifying only “oval tube.” Mark outside width and height, wall thickness, straight-face length or radii where applicable, and the orientation of any holes, slots or bends. Identify critical fit dimensions and visible surfaces so the quotation can address the actual assembly requirements.
For curved parts, provide bend radius, angle and straight lengths. Profile distortion and surface marking must be considered during the manufacturing review. For load-bearing or outdoor assemblies, the designer should specify material selection, section requirements and applicable project criteria; appearance alone does not establish suitability.
Key Features
- Two distinct section styles for different design and assembly requirements.
- Brushed and polished surface options to coordinate with visible metalwork.
- Custom dimensions and secondary operations evaluated against the supplied drawing.
- Real product photographs showing the tube openings and surface appearance.
Typical Applications
Potential uses include furniture frames, display fixtures, decorative rails, interior metalwork and fabricated equipment components. Suitability depends on the selected grade, wall thickness, design loads and operating environment.
Quality Control and Inspection Requirements
Agree the inspection scope before production. Relevant checks include outside section dimensions, wall thickness, cut length, straightness, end condition and visible surface finish. If material documentation, first-article approval or dimensional reports are required, list these in the enquiry so availability and acceptance criteria can be confirmed.
OEM Customization and Request for Quotation
Send a profile drawing or clearly dimensioned sketch, stainless steel grade, wall thickness, finished length, order quantity and delivery destination. Include finish samples or references, any bending or cut-out details, and required inspection documents. AODSON can then review feasibility and prepare a quotation based on the agreed specification.
Request a quote for custom oval tubing or explore our stainless steel fabrication capabilities.
Frequently Asked Questions
What is the difference between oval and flat oval tubing?
Oval tubing has an elliptical, continuously curved cross-section. Flat oval tubing has opposing straight faces joined by rounded sides. A cross-section drawing is the best way to avoid ambiguity when ordering.
Can I order a particular grade and custom size?
Submit the required grade and dimensions for review. The reference range includes 201, 304 and 316L options, but availability, tolerances and minimum order requirements must be confirmed for each specification.
Can the tubes be cut or bent for my assembly?
Cutting and bending requirements can be evaluated from your drawing. Provide hole or slot positions, bend radii, angles and finish requirements; feasibility depends on the section geometry, wall thickness and material.
