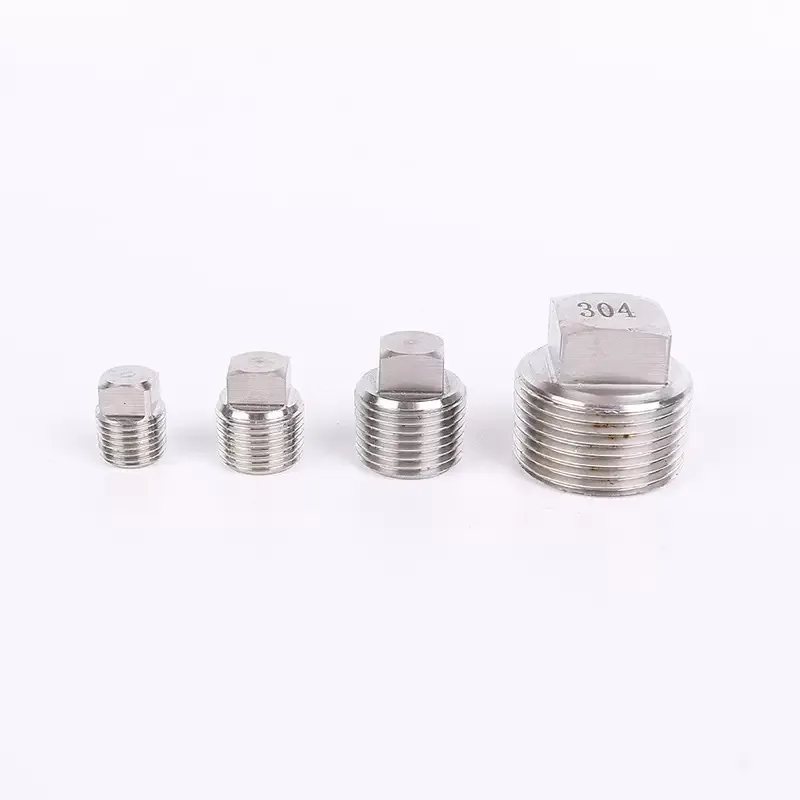

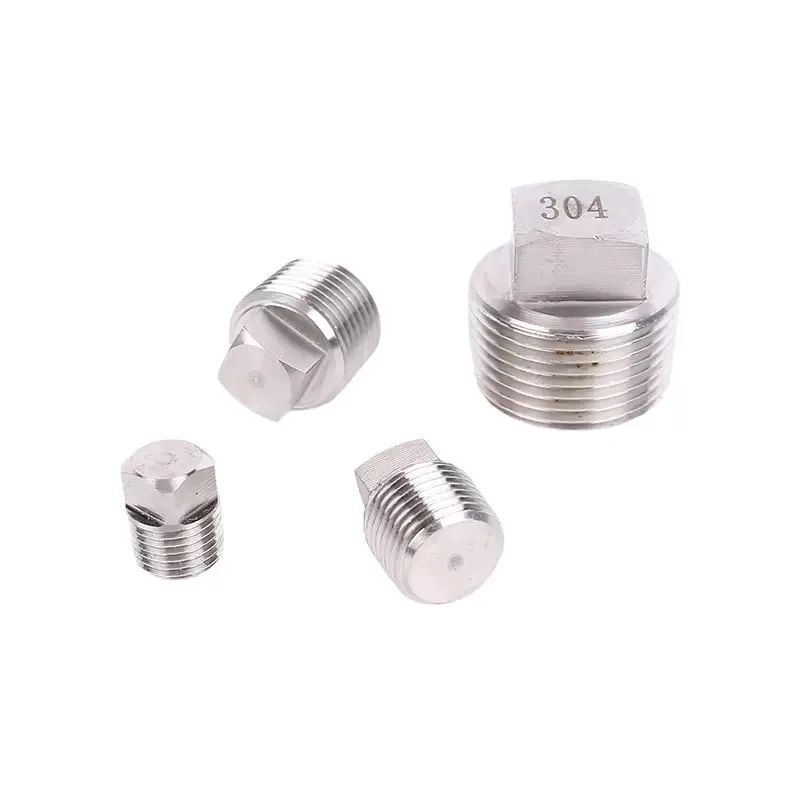

Stainless steel square head threaded pipe plugs provide a compact, tool-accessible closure for unused female-threaded ports. The external square drive supports installation with a wrench or socket while the male thread engages the mating port. AODSON supplies these plugs to drawing or approved specifications for industrial piping, valve, pump, manifold, and equipment applications.
Product Specifications and Custom Options
| Product type | Male-threaded pipe plug with external square drive |
|---|---|
| Material | Stainless steel, including 304 when specified and verified; other grades subject to application review |
| Thread options | NPT, BSPT, BSPP, metric, or drawing-specific thread forms |
| Drive style | External square head; drive size and head height to specification |
| Sealing options | Taper-thread interference, sealing compound, tape, gasket, or project-specific sealing arrangement |
| Finish | Machined, cleaned, passivated, polished, or project-specific |
| Customization | Thread size, length, drive dimensions, material grade, marking, finish, inspection, and packaging |

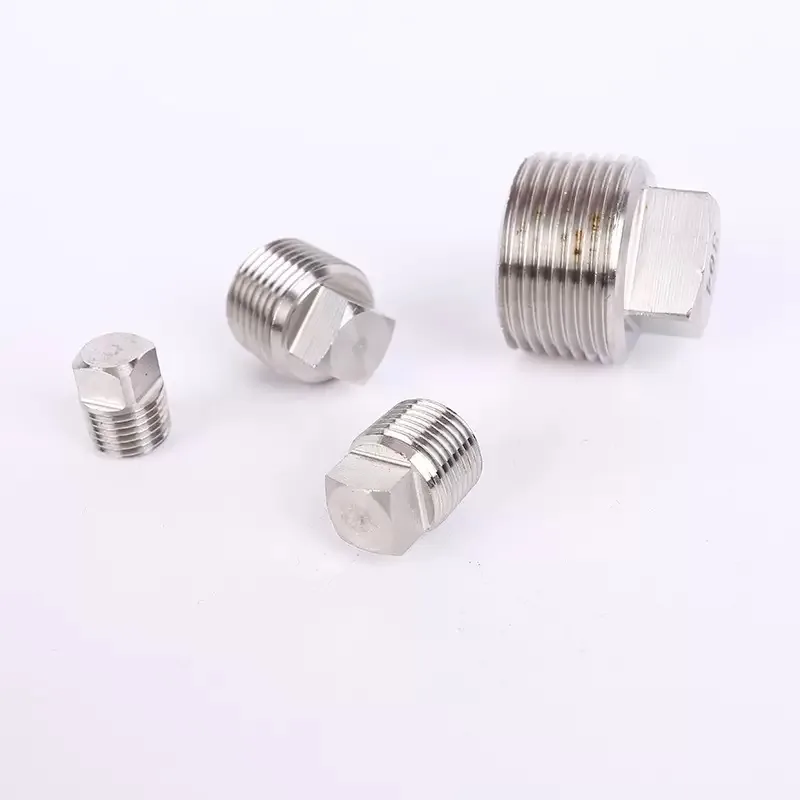

Square Head Drive and Sealing Interface
The square projection is designed to provide reliable wrench engagement in compact assemblies. Head size, corner radius, thread runout, engagement length, and the sealing interface should be reviewed together so that the plug can be installed to the required depth without damaging the mating port.
Design and Ordering Considerations
Specify the mating port standard rather than relying on nominal size alone. NPT, BSPT, BSPP, and metric threads are not automatically interchangeable. For pressure service, confirm working pressure, temperature, fluid compatibility, tightening method, sealing compound or gasket, and applicable inspection requirements before production.
Key Product Features
- External square drive for positive wrench engagement
- Compact male-threaded closure for unused equipment ports
- Custom thread standards, drive dimensions, materials, and markings
- Optional passivation, cleaning, inspection, and project packaging
Typical Applications
- Hydraulic and pneumatic manifolds
- Pumps, valves, and process equipment
- Pipework test, drain, and inspection ports
- Industrial machinery and OEM assemblies
Pressure and Compatibility Requirements
A plug is only one part of a pressure-containing joint. Allowable pressure depends on the plug material, thread standard, engagement, mating component, sealant or gasket, temperature, fluid, installation torque, and applicable code. Final pressure ratings and acceptance criteria must be established from the approved assembly specification.
Quality Control and Inspection
Inspection can include material verification, thread gauging, drive dimensions, surface condition, marking, cleanliness, and lot traceability. Dimensional reports, material certificates, and project-specific inspection records are available when included in the purchase specification.
OEM Customization and RFQ Information
AODSON supports drawing-based and sample-based production for OEM buyers, distributors, and engineering teams. For an accurate quotation, please provide:
- Thread standard, nominal size, and engagement length
- Material grade and operating environment
- Square drive dimensions and installation constraints
- Sealing method, pressure, temperature, and fluid
- Required quantity, inspection, marking, packaging, and destination
Request a quote for this component, browse related pipe fittings and couplings, or review AODSON CNC machining and quality control capabilities.
Frequently Asked Questions
Can the square head and thread dimensions be customized?
Yes. Thread form, thread length, square drive size, head height, material, marking, and finish can be produced to an approved drawing or sample after feasibility review.
Are these plugs limited to 304 stainless steel?
No. 304 can be supplied when specified and verified, while other stainless or engineering alloys may be selected according to corrosion, strength, temperature, and compatibility requirements.
What information is needed for a pressure-service quotation?
Please provide the complete thread designation, mating component, working pressure and temperature, fluid, sealing method, installation requirements, material grade, quantity, and any applicable code or test requirement.
