SUS304 Stainless Steel 90-Degree Mounting Bracket

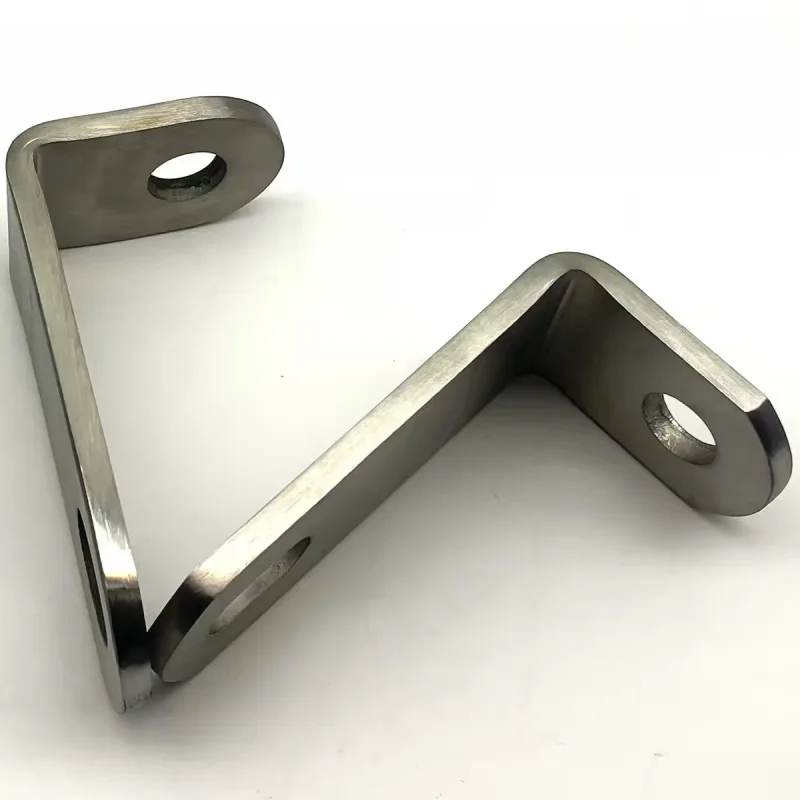

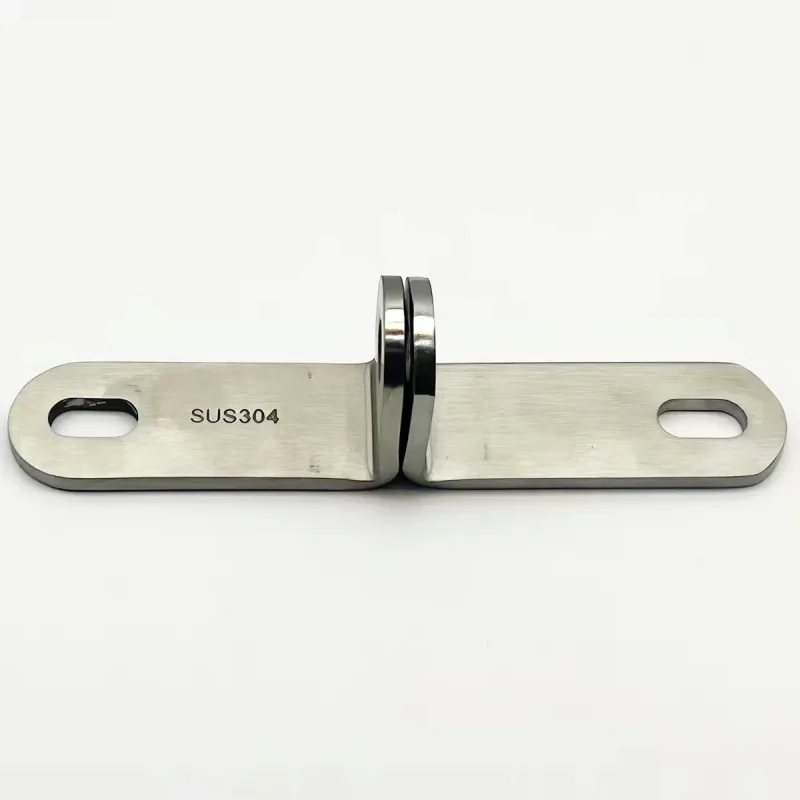

This L-shaped mounting bracket is formed from stainless steel plate and combines a round hole on the upright leg with an elongated slot on the base. The product is marked SUS304 and has a brushed face with polished edges.

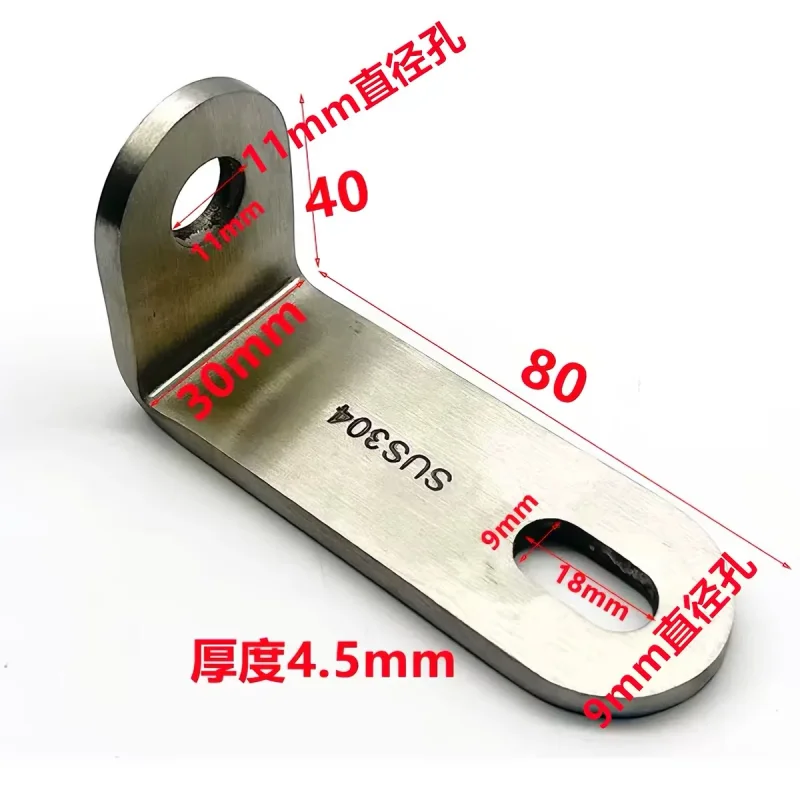

Reference Dimensions
| Material shown | SUS304 stainless steel, as marked on the photographed product. |
|---|---|
| Custom materials | SUS201 and other stainless steel grades, carbon steel, aluminum alloy and special alloys can be evaluated against the drawing, quantity and service requirements. |
| Shape | 90° L-shaped angle bracket with rounded ends. |
| Base length | 80 mm. |
| Upright height | 40 mm. |
| Bracket width | 30 mm. |
| Plate thickness | 4.5 mm. |
| Upright hole | 11 mm diameter round hole. |
| Base slot | 18 × 9 mm elongated slot. |
| Surface | Brushed face with polished edge appearance. |
Mounting and Custom Options
The elongated slot provides installation adjustment, while the upright round hole accepts a separate mounting bolt or accessory connection. Potential uses include motorcycle or e-bike racks, auxiliary lights, phone mounts and general equipment brackets; verify the dimensions, load and installation method for the intended assembly.
Custom enquiries can specify SUS201, SUS304 or other stainless steel grades, carbon steel, aluminum alloy or special-alloy materials, together with alternative plate thicknesses, leg lengths, hole patterns, slot sizes, bend orientation, surface finishing and laser marking. Material availability and processing feasibility are confirmed during quotation. Dimensions shown are taken from the supplied reference image and should be reconfirmed for production orders.
Request a quotation for stainless steel L-shaped mounting brackets.
