Five-Way Threaded Cross Pipe Fitting

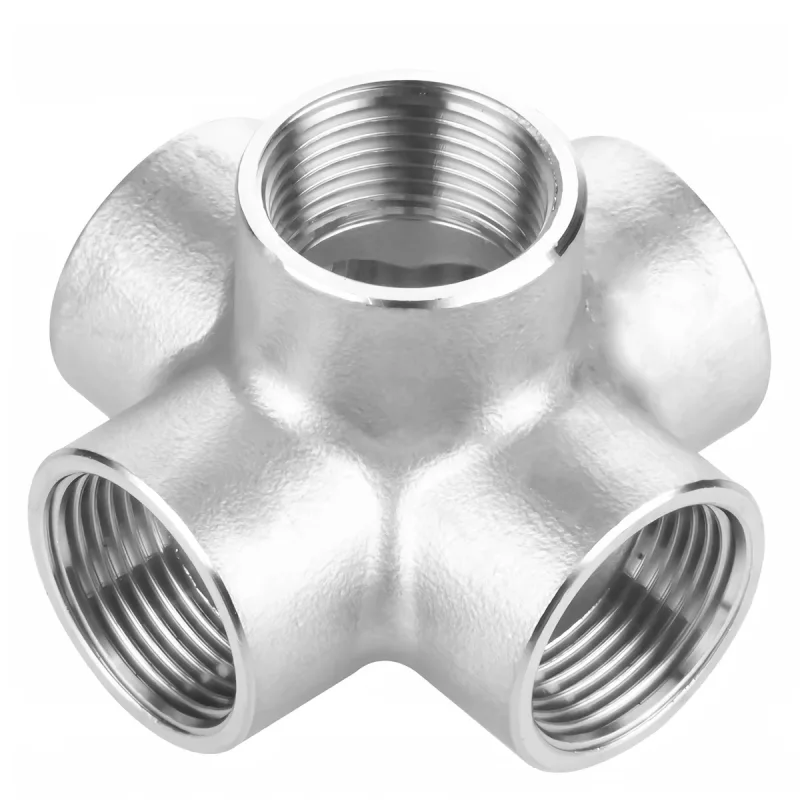

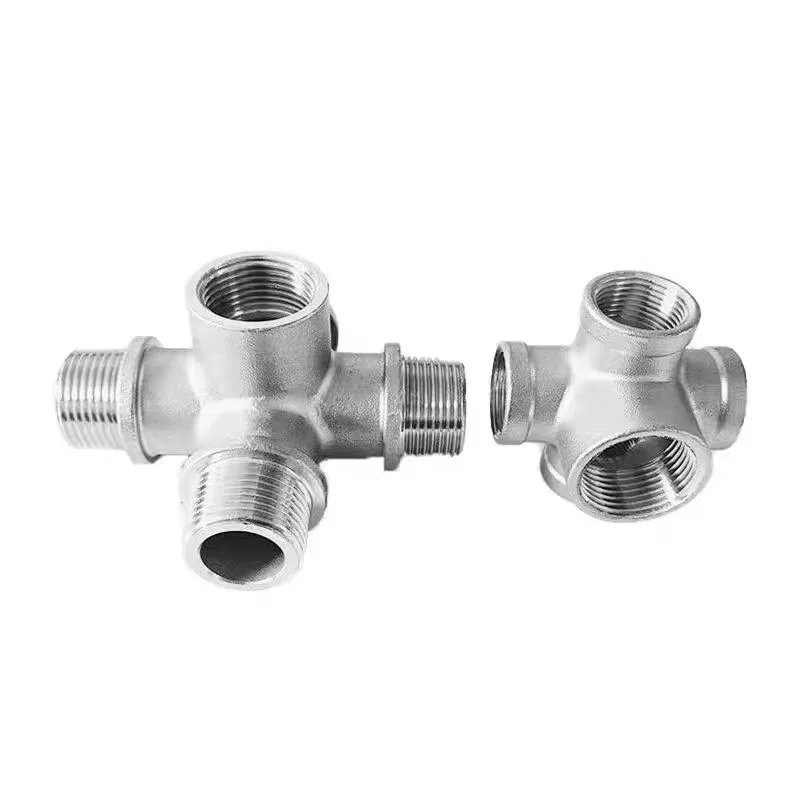

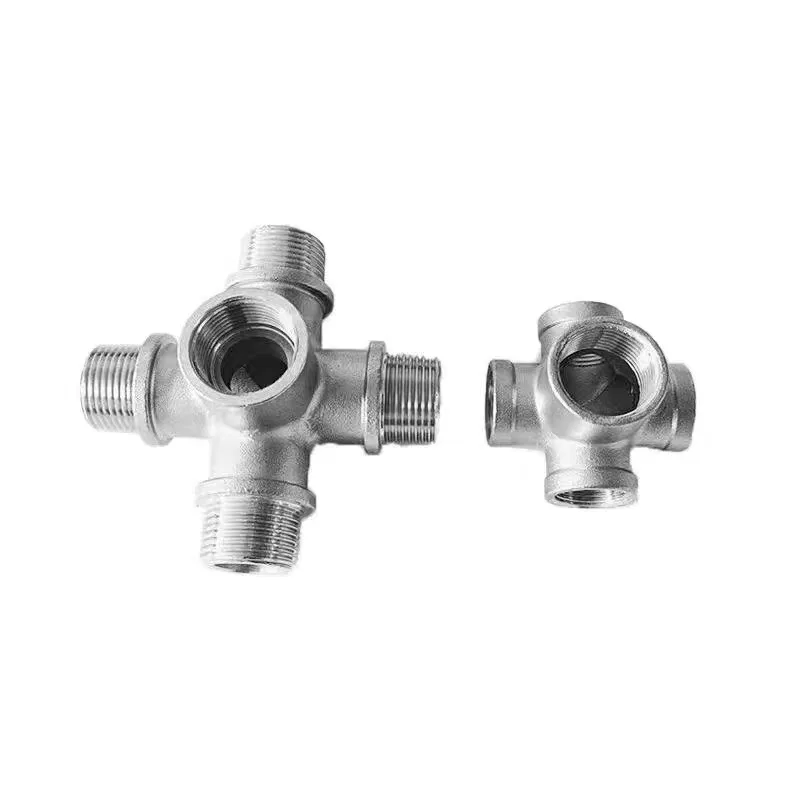

This compact component is commonly described as a five-way cross pipe fitting, five-way threaded cross or 3D five-port connector. Four ports are arranged around the body and a fifth port branches on the perpendicular axis, allowing several lines to meet within a small installation space. The photographed parts show mixed male/female and female-thread configurations.
Configuration and Custom Options
| Port arrangement | Five-port three-dimensional cross; equal or reducing bores and project-specific port orientation are available. |
|---|---|
| Connection combinations | All female, all male or mixed male/female threaded ports. |
| Thread options | NPT, BSPT, BSPP, metric or drawing-specified threads. The required thread standard must be confirmed before production. |
| Nominal size | Made to drawing or sample; equal-size and reducing-port versions are available. |
| Manufacturing route | Cast, forged or machined construction can be selected according to material, quantity and service requirements. |
| Reference material | The supplier reference identifies a 304 stainless steel version. Final grade is produced and documented to the purchase specification. |
Material Options
| Stainless steel | 304, 304L, 316, 316L, 321, 310S and 904L. |
|---|---|
| Duplex stainless steel | 2205 and super duplex 2507. |
| Carbon and alloy steel | A105, A350 LF2, Q235, Q355 and drawing-specified alloy grades with a suitable surface treatment. |
| Titanium | Grade 2 / TA2 and Grade 5 / TC4, subject to service and manufacturing review. |
| Nickel and special alloys | Inconel 600, 625 and 718; Hastelloy C-276; Monel 400; Alloy 20 and other project-specified alloys. |
| Other materials | Brass, bronze, aluminum and customer-specified metals can be evaluated for suitable applications. |
Applications and Ordering Information
Five-way threaded crosses are used for compact branch distribution in pneumatic lines, water systems, hydraulic equipment, instrument piping, process skids and custom manifolds. Media compatibility, sealing method, allowable pressure and temperature depend on the selected material, thread form, wall thickness and applicable design standard.
For quotation, provide the port map, nominal size or drawing, male/female combination, thread standard, material grade, medium, design pressure and temperature, inspection or test requirements, surface finish and quantity.
Request a quotation for a custom five-way threaded cross fitting.
